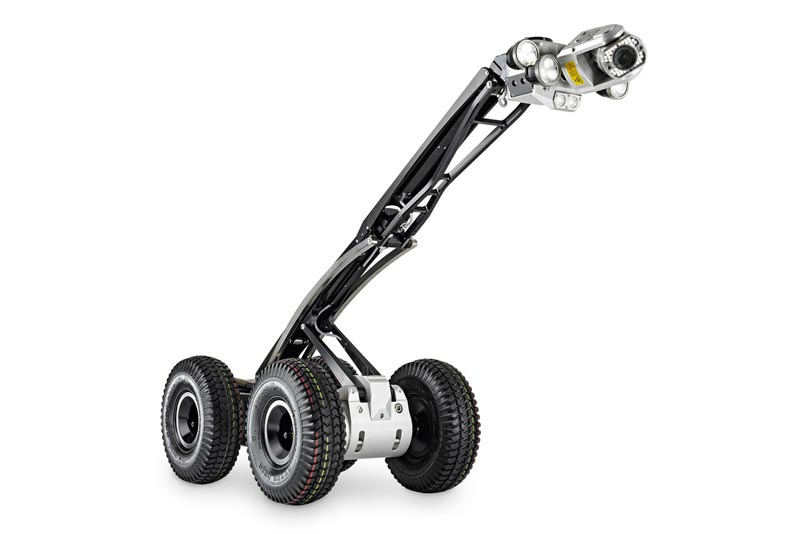

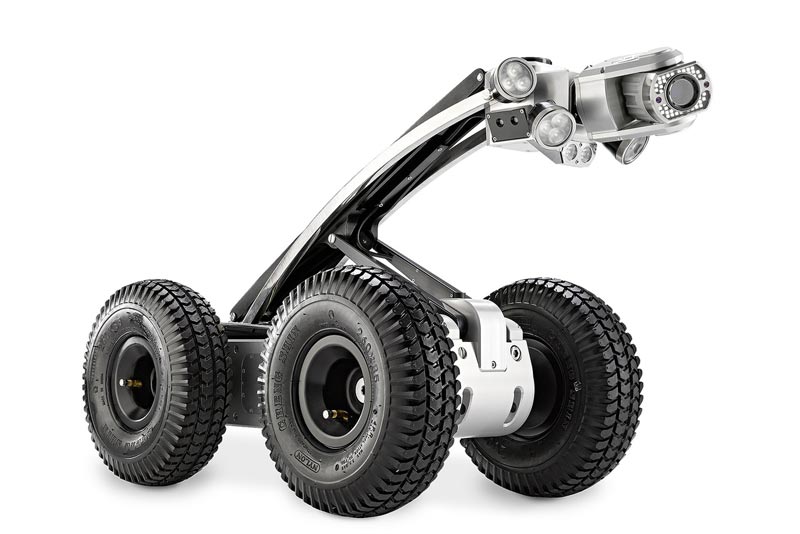

RX 400
CRAWLER Ø 400 MM - 1300 MM
The application area of the RX400 crawler ranges from DN 400 up to DN 1300 (optionally up to DN 2000).
- Application area ranging from DN 400 up to DN 1300 (optionally up to DN 2000)
- Powerful four-wheel drive (steerable)
- Electrically operated 2-speed gearbox
- Electrically operated clutch with safety mode = clutch is permanently engaged
- Good ground clearance
- Automatic lifter
- Sensor system for automatic camera centering
- Inside the pipe
- Location transmitter can be activated
- Constant monitoring by roll and inclination sensor
- Constant monitoring of the internal pressure and temperature
- Four manually adjustable LED lamps for optimum illumination of the pipe (LEDs cannot be adjusted manually with the EX version)
- Two LED lamps for optimum illumination of the pipe bottom
- Integrated rear view camera
- Interface for additional rear view camera in an elevated position
- Interface to mount an optional elevator extension
- Compatible to the SUPERVISION (PAL) inspection system (with reduced scope of functions, e.g. no electrical gearshift, no safety mode, no camera centering)

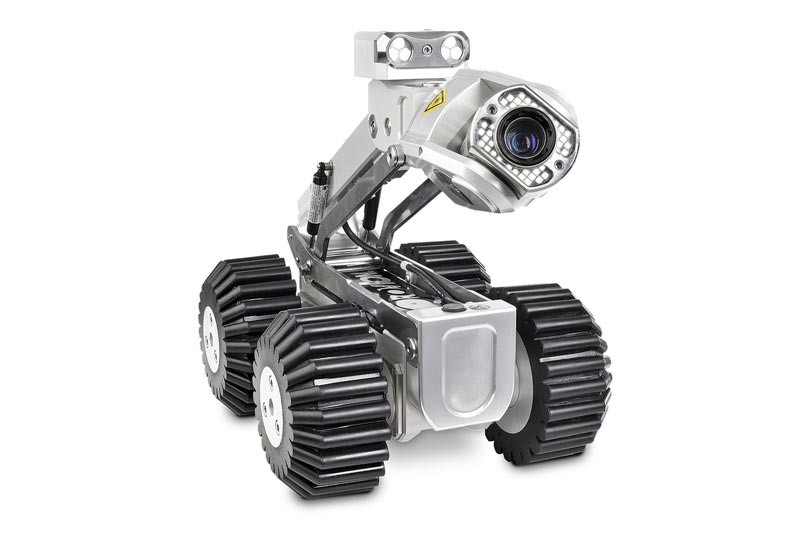

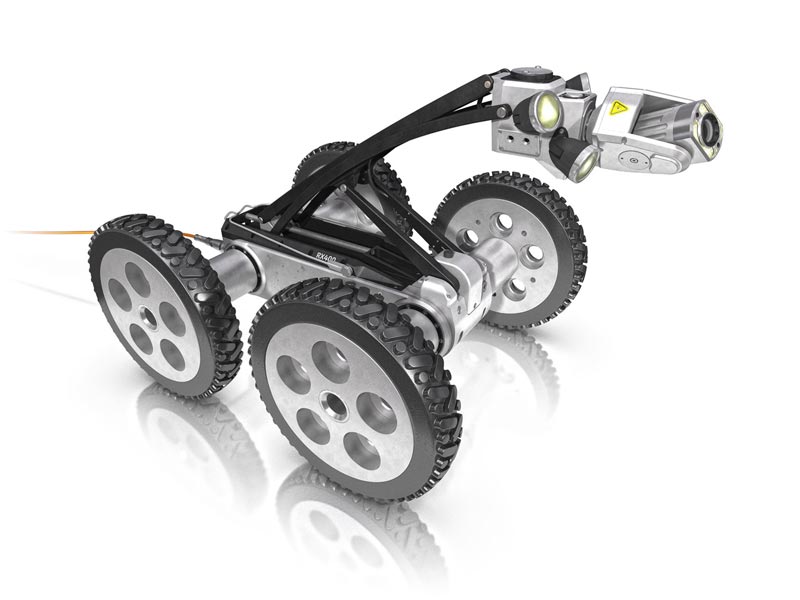

RX 130
CRAWLER Ø 150 MM - 300 MM
The application area of the RX130 crawler ranges from DN 150 up to DN 1000 (with elevator and carrier mounted).
- Powerful six-wheel drive (steerable)
- Location transmitter can be activated
- Crawler wheels for all surface conditions
- Constant monitoring by pitch and roll sensor
- Constant monitoring of the internal pressure and temperature
- Integrated backeye camera
- Optional automatic elevator
- Optional carrier
- Optional auxiliary light
- Compatibility to the SUPERVISION (PAL)
- Inspection system (as of version 2012) and PAL video format

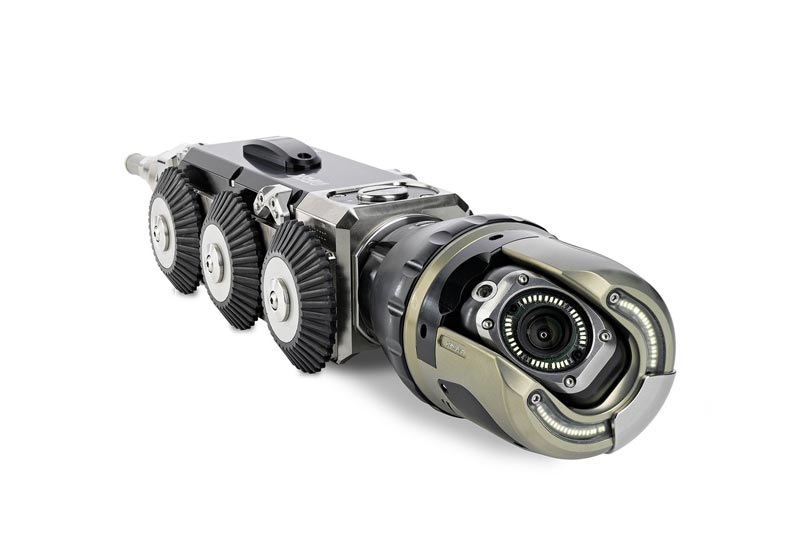

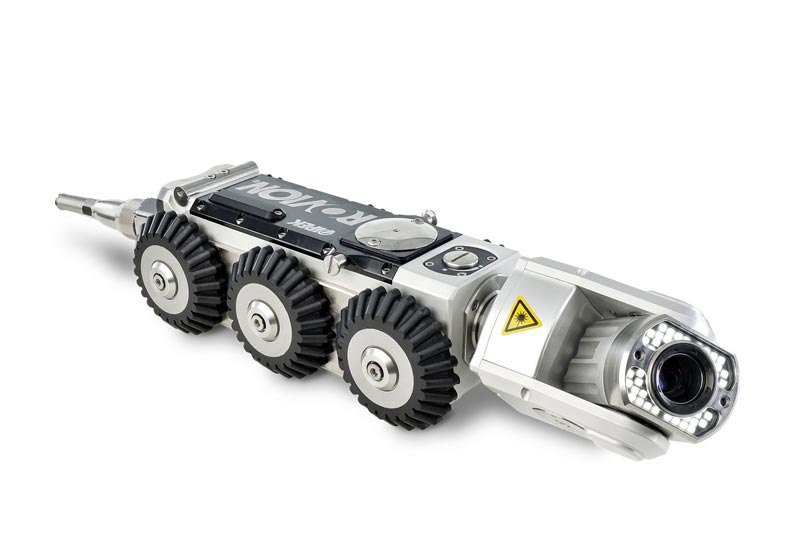

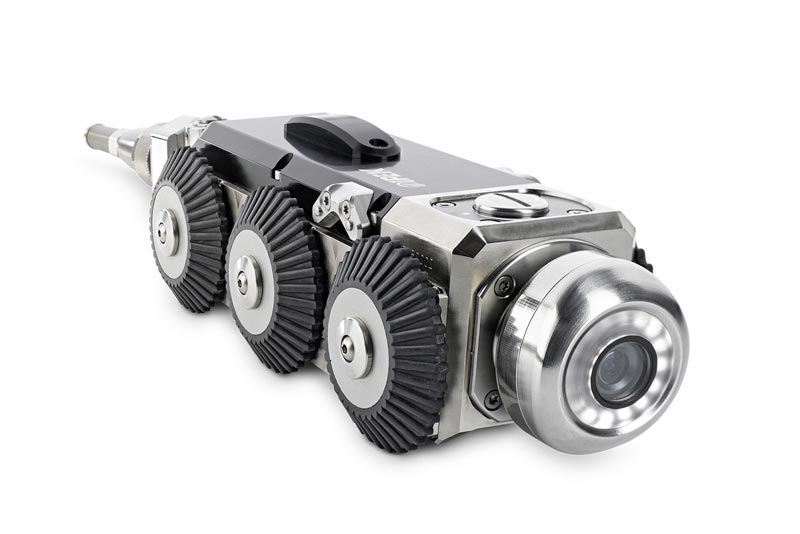

RX 95
RX95 - CRAWLER Ø 100 MM - 200 MM
The application area of the RX95 crawler ranges from DN 100 up to DN 200.
- Powerful six-wheel drive (steerable)
- Location transmitter can be activated or switched over
- Crawler wheels for all surface conditions
- Constant monitoring by pitch and roll sensor
- Constant monitoring of the internal pressure and temperature
- Compatibility to the SUPERVISION®-(PAL)
- Inspection System (as of version 2012) + PAL video format

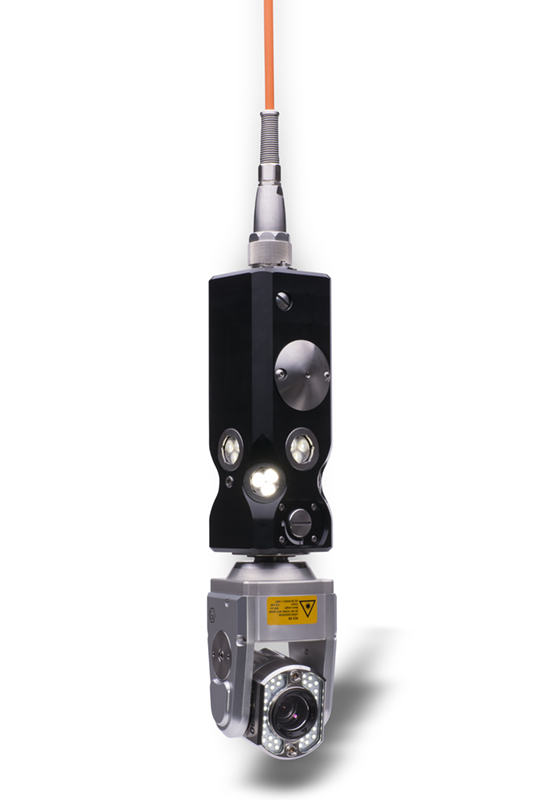

RCC90
CAMERA ADAPTER Ø 79 MM - 2000 MM
RCC90 camera adapter for the ROVION inspection system. The application area starts at DN 90. The adapter serves as a direct connection of a camera to the camera cable to inspect horizontal and vertical pipes, manholes and special constructions. The camera adapter is optionally available as EX version.
- Horizontal and vertical operation
- Quick and easy connection of cameras, cables and auxiliary lights (QCD assembly)
- Threaded holes to fasten the adapter to external devices (e.g. skids, rafts)
- Integrated, laterally emiting LED lamps serve as homogeneous illumination of large constructions
- Lateral illumination which rotates synchronously with the camera head
- Light control of 0% - 100%
- Internal pressure display and temperature display via system status
- Robust design
- Threaded holes to fiy the camera adapter e.g. onto skid, raft
- Compatible with ROVION inspection system
