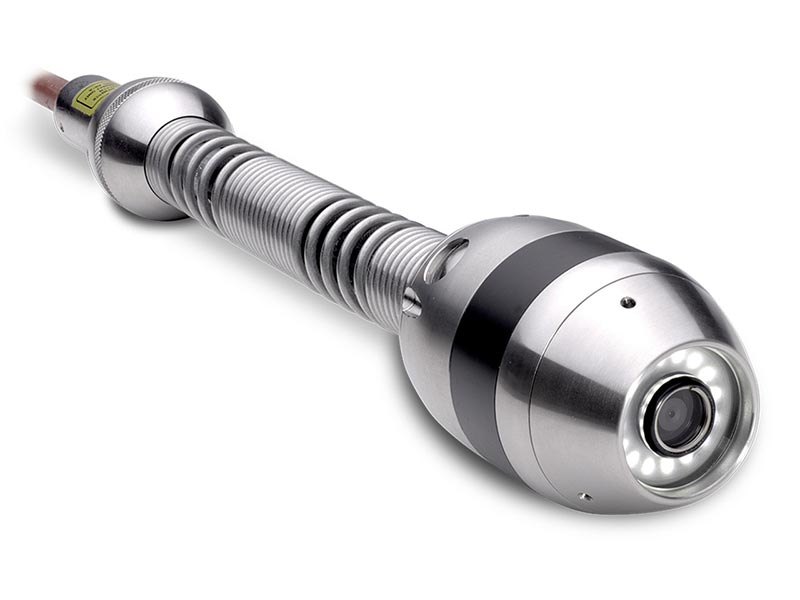

AC52

AXIAL CAMERA Ø 60 MM - 200 MM

The AC52 Axial Camera is used in combination with the AGILIOS push camera system. Its application area starts at DN 60. The Axial Camera AC52 is characterized by its high-quality and extremely robust design, excellent optical qualities and an upright picture.

• CMOS color camera
• Homogeneous illumination through LED lighting
• Light control from 0 - 100%
• High-quality and extremely robust design
• Impact-resistant lighting ring
• High sensitivity to light
• Constantly upright picture
• Location transmitter can be activated or switched over
• Easy location/tracking through pendular-mounted locating spoil
• Stainless steel housing

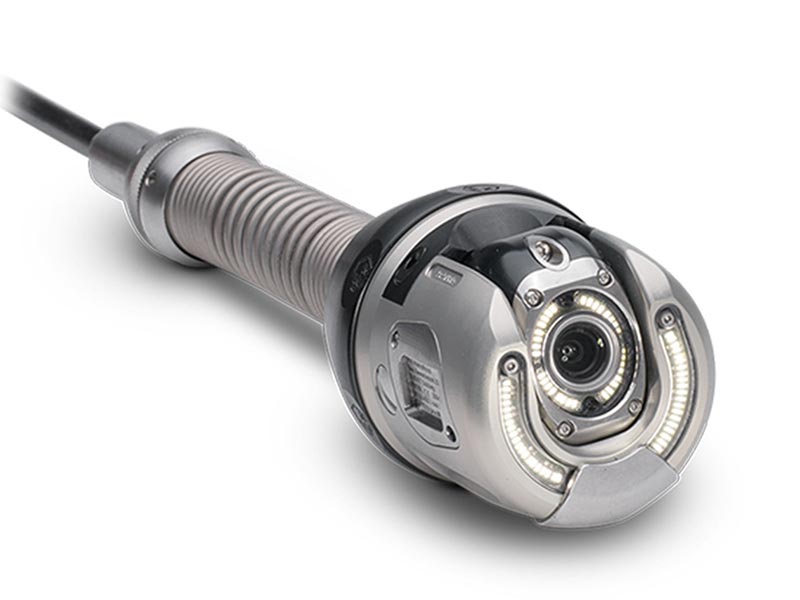

PTP 70II

The pan & tilt head camera PTP70II features endless rotation and a panning range of -20° up to +110°. The pan & tilt camera PTP70II is connected to a crawler with the crawler adapter RCC70 or to the AGILIOS pan & tilt push camera system by means of the spring connection SP70.

• CMOS color camera
• Rotation and pan unit integrated in the camera head
• Endless rotation range
• Powerful homogeneous illumination through LED lighting
• Light control from 0 - 100%
• Impact-resistant lighting ring with integrated, exchangeable bumper
• Upright picture
• Integrated laser to determine diameters and crack widths
• Location transmitter can be activated
• High sensitivity to light
• High resolution
• Indication of the panning and rotation angle on the GUI of the VC200/ DCX5000 and in the text generator (VC200)
• Internal pressure display via system status VC200 / DCX5000
• With spring connection SP70 compatible to the AGILIOS pan & tilt push camera system
• With crawler adapter RCC70 compatible to the ROVION inspection system
• Interruption-free panning of pipe connections

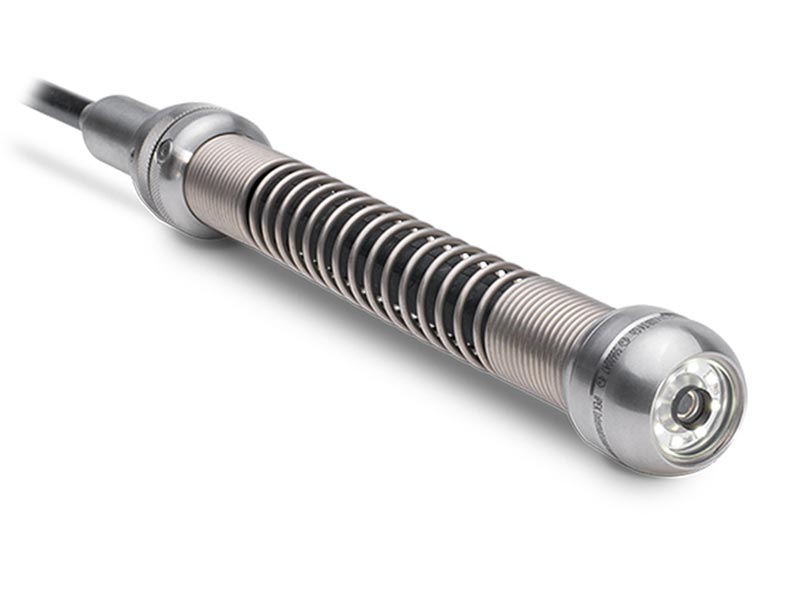

AC 40

AXIAL CAMERA Ø 50 MM - 200 MM

The axial camera AC40 is used in combination with the AGILIOS push camera system. Its application range starts at DN 50. The Axial Camera AC40 is characterized by its high-quality and extremely robust design, excellent optical qualities and a constantly upright picture. The camera is optionally available as EX version.

• CCD color camera
• Homogeneous illumination through LED lighting
• Light control from 0 - 100%
• Extremely robust design
• Impact-resistant lighting ring
• Scratch-proof camera front glass
• High sensitivity to light
• Constantly upright picture
• Easy location through strong location coil
• Stainless steel housing
• Optionally available with camera connector
