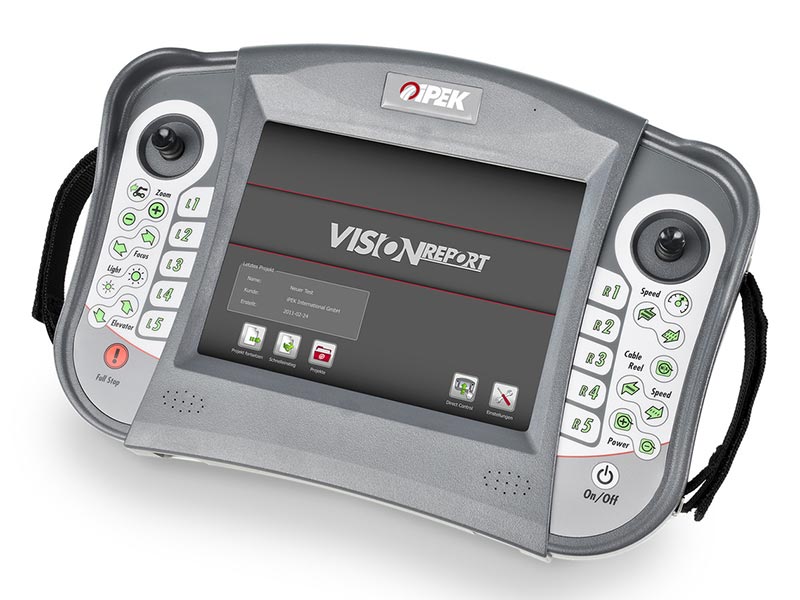

VISIONCONTROL VC200
MOBILE CONTROL PANEL
The ROVION pipeline inspection system is equipped with the VC200 central control panel and the VISIONREPORT software. This control panel can also be used with other iPEK systems e.g. the AGILIOS pushcamera system
- Multi-functional, portable control panel suitable for ROVION, AGILIOS and ReportableBox
- Basis for operating software VISIONREPORT
- Inspection according to predefined standards
- Data display can be customized as desired
- Video recording in MPEG-4 AVC/H.264, picture recording in .BMP
- Data storage on an internal CF card (64GB)
- Data transfer via USB and Ethernet
- Touch-screen suitable for daylight with a resolution of 800 x 600 px
- Keyboard & mouse can be connected via USB
- Low weight and ergonomic design for optimal operator comfort
- Removable belt

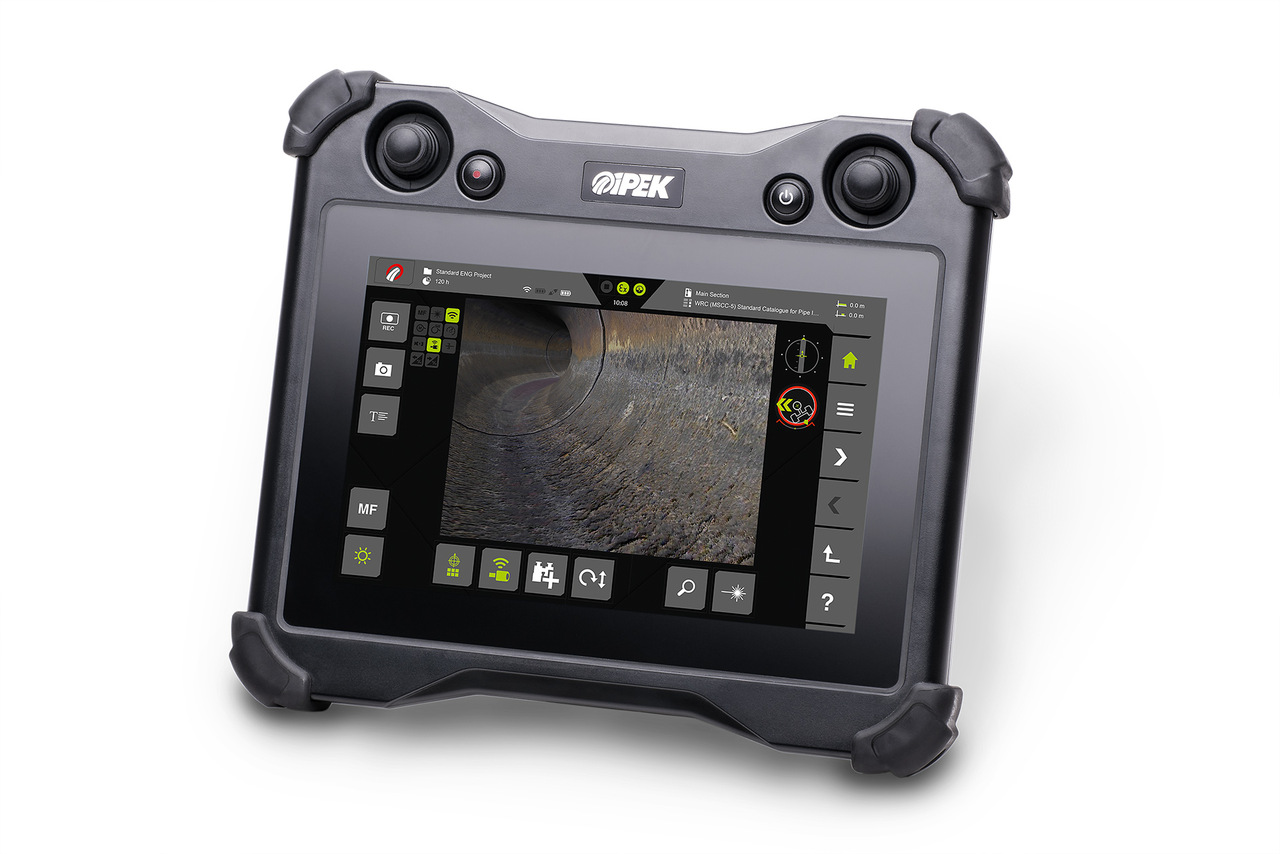

VISIONCONTROL VC500
PRENOSIVA KONTROLNA TABLA
The ROVION pipeline inspection system is equipped with the VC500 central control panel and the VISIONREPORTII software. This control panel can also be used with other iPEK systems e.g. the AGILIOS pushcamera system
- Multi-functional, portable control panel
- Basis for operating software VISIONREPORT II with “WinCan Embedded Reporting“ *
- User-friendly operating surface, optimized for the control of the software via innovative touch and gesture controls
- Modularly expandable software
- Standard-compliant inspections due to integrated inspection catalogs *
- USB, Ethernet and WIFI interface for the simple import and export of project and inspection data *
- Cloud connection (WinCan Web) for a location-independent, quick exchange of project and inspection data via the internet *
- Configurable text overlay function
- Robust design and daylight readable, high resolution touch-screen
- Two 2-axle-joysticks with push function for precise control of crawler and camera functions
- Operation via USB keyboard & mouse possible
- External mains adapter for the operation of the control panel at the office desk *
- Low weight and ergonomic design with integrated, foldable stand
- Compatible with ROVION and AGILIOS inspection systems
*optional
