AGILIOS push camera system
POWERFUL AND MANEUVERABLE WITH HIGH PIPE BEND MOBILITY
The AGILIOS™ pan & tilt push camera system consists of a coiler with a reinforced, yet flexible push rod of up to 90 m length, two control panels, various axial cameras and one pan & tilt head camera.
Depending on the application area and purpose there are two multi-functional and mobile VISIONCONTROL control panels - version VC200 or version VC50 - that can be used.
The extremely robust VC50 is the control unit suitable for inspections under harsh environmental conditions and the VC200 allows to carry out inspections according to predefined standards.
PRODUCT DETAILS COILER AR90II
Coiler for the push camera inspection system AGILIOS™, version AR90II. It is used for inspections of property drainage systems and their connecting pipes leading to the main sewer but also for the inspection of main sewer pipes. Due to its extremely robust and splash proof construction the coiler is eminently suitable for the use under harsh conditions and in all weathers. The maximum length of the rod is 90 m.
- Extremely robust and splash-proof for the use under harsh conditions
- Easy transport through large all-terrain wheels
- Space-saving storage through removable wheels
- Operation in vertical and horizontal position of the coiler possible
- Portable use through battery operation
- Integrated racks for two exchange batteries
- Automatic switching from battery 1 to battery 2
- Battery charging through external power supply
- Mains operation (optional) possible
- Extremely robust, yet fl exible push rod
- Meter counter
- Analog Video OUT interface
- Reel brake
- Rotatable and pivoting control panel mounting for flexible adjustment of the control panels
- Reflectors for greater visibitily for inspection work in nocturnal traffic
- Compatible with the control panels VC200 and VC50
PRODUCT DETAILS COILER AR90I
The push camera system AGILIOS™ is designed for inspection of duct and pipe systems with pipe diameters starting at DN 50. The maximum length of the push rod is 90 m. In combination with the mobile control panel VC200 an inspection according to predefined standards can be carried out.
- Multi-functional, portable operator panel VC200
- Inspection according to predefined standards
- Extremely robust, yet flexible push rod
- Meter counter
- Swivel arm to mount the mobile control panel VC200
- Mains or battery operation possible (optional)
- Side bag for storing the mobile control panel VC200, power cable and battery pack
AGILIOS System with coiler AR90II
Download
AGILIOS System with coiler AR90I
Choice between two axial cameras and a pan & tilt head camera, application area from DN 50 - DN 300, robust design, constantly upright picture and optimal LED illumination
Choice between two multifunktional, portable control panels VISIONCONTROL version VC200 and VC50 as controlcenter for the inspection with the AGILIOS system
Connection box to connect the AGILIOS system to a ROVION- or a SUPERVISION- pipeline inspection system.
Software VISIONREPORT

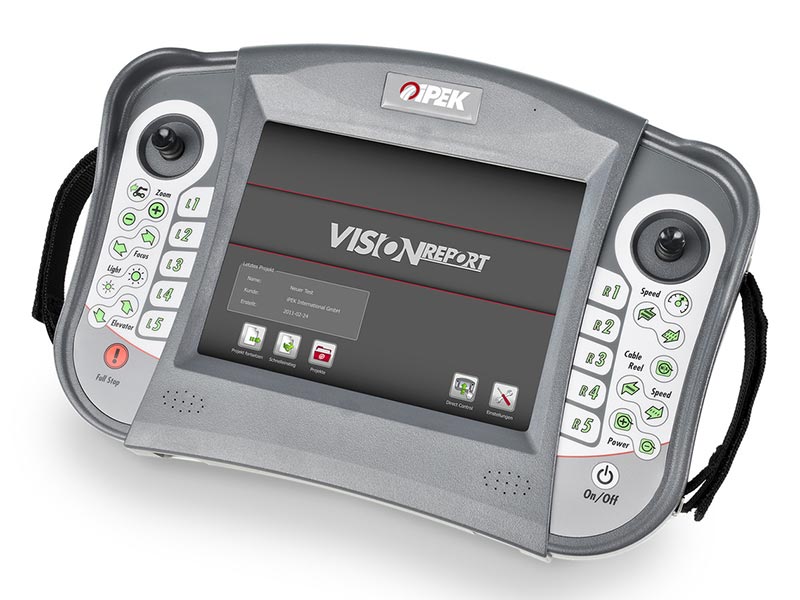

Our iPEK VISION REPORT software developed by our own engineers is the perfect match for iPEK's pipeline inspection systems. Intuitive operation by means of a user-friendly interface and focusing on essentials allows an uncomplicated and efficient inspection process. The display of monitoring functions and warning messages in case of danger provides safety.
Download

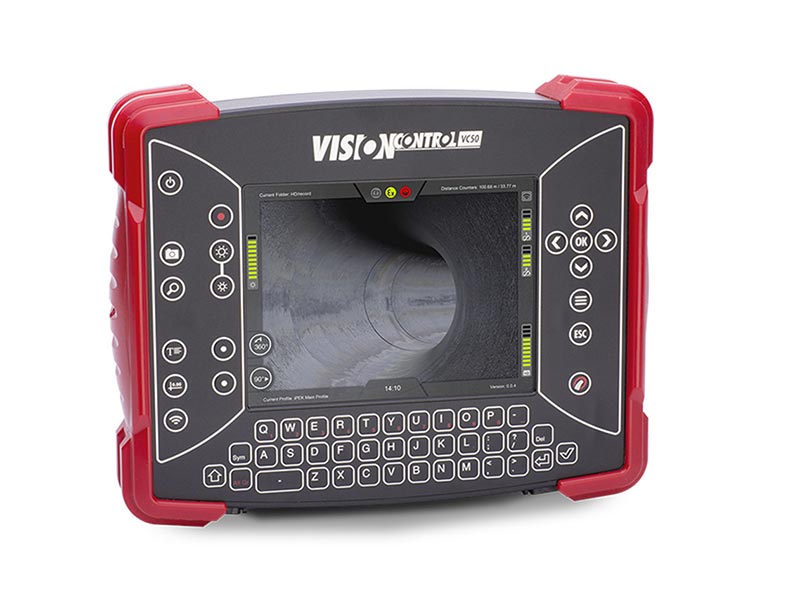

Software VisionControl VC50
The iPEK software is developed especially for the VisionControl VC50 control panel and offers a self-explanatory, user-friendly operating interface. To ensure a high ease of use it is possible to customize operating functions in order to suit specific inspection requirements. This enables an uncomplicated and efficient inspection process. For providing safety monitoring and warning messages will be displayed on the screen.
Download
