DrainInternal Joint Seal
Designed to restore joint integrity

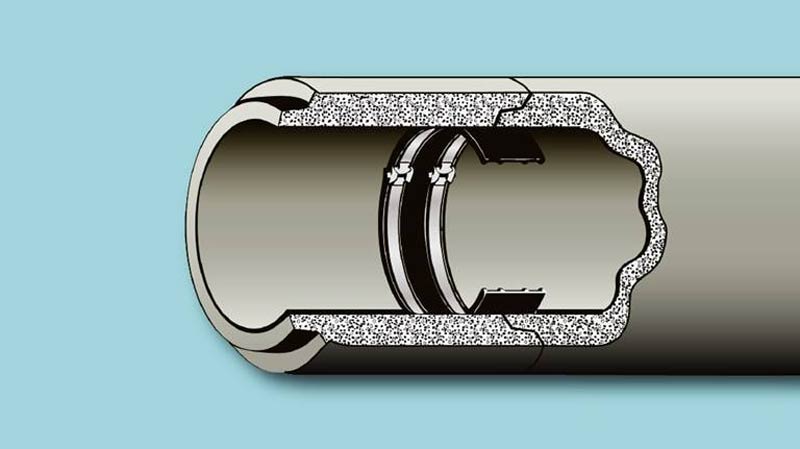

Pipe and manhole joints generally experience higher ground water pressure than the grade adjustment area of a manhole. When infiltration occurs due to deflection, offset or corrosion, the Internal Joint Seal is specifically designed to re-establish watertight conditions.

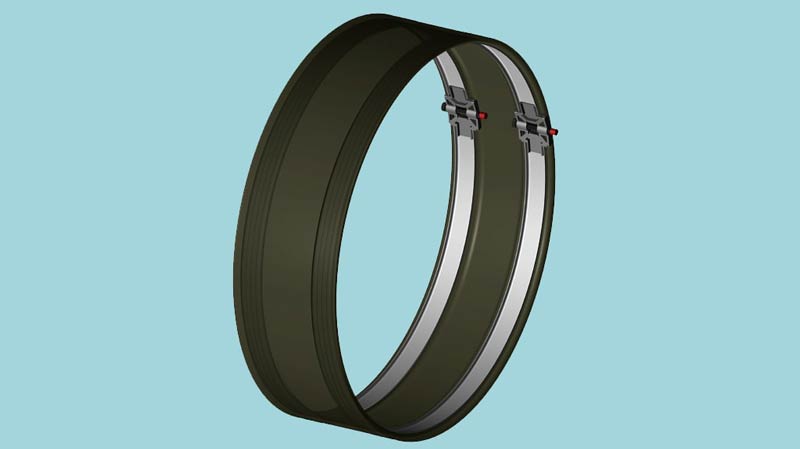

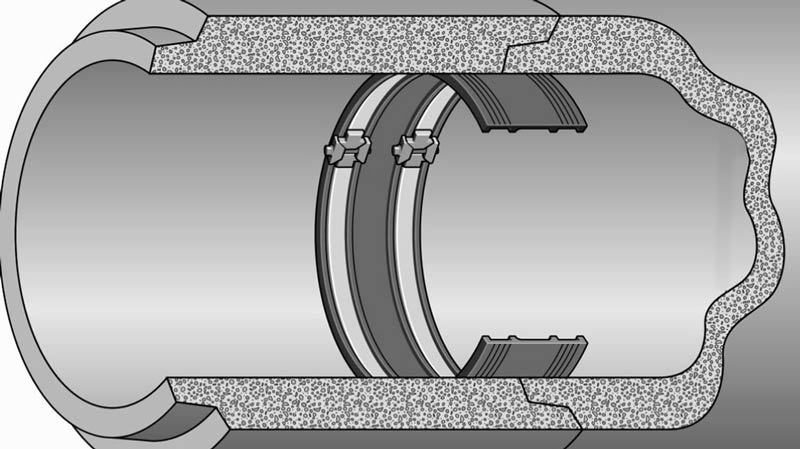

The Internal Joint Seal prevents infiltration by bridging the joint with a flexible rubber seal and compressing the rubber seal against the inside diameter of the pipe or manhole on either side of the joint with the WedgeLock expansion bands.
Function and Design
The Internal Joint Seal prevents infiltration by bridging the joint with a flexible rubber seal and compressing the rubber seal against the inside diameter of the pipe or manhole on either side of the joint with the WedgeLock expansion bands.
Principle of Operation

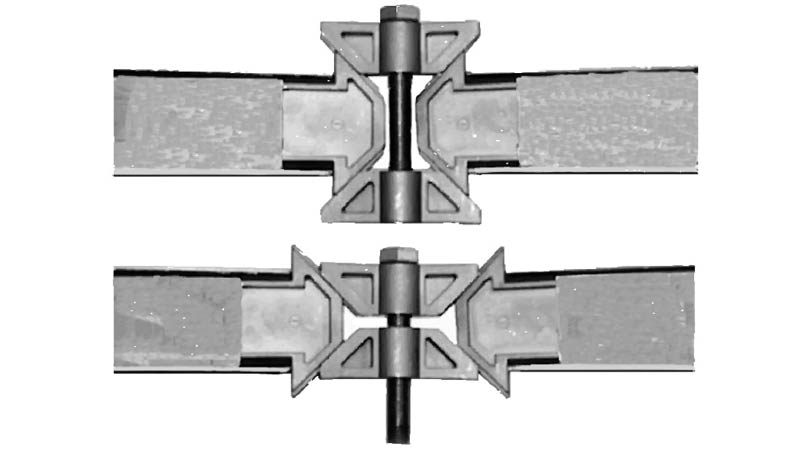

The compressive force providing the seal on either side of the joint is the result of increasing the effective diameter of the stainless steel expansion bands.
The diameters of the expansion bands are increased by tightening the bolts on the WedgeLock Assemblies.
This forces the corresponding wedges, which are attached to the expansion bands, away from each other increasing the expansion band diameter.
Application
- Designed to restore joint integrity
- Can be used in concrete, HDPE and most other types of pipe
- Installs easily with torque wrench and socket
- Extension seals available to expand coverage area
Premium Quality
The Internal Joint Seal is made from a premium quality rubber compound and stainless steel bands which are designed to withstand the corrosive environment in sanitary sewers.

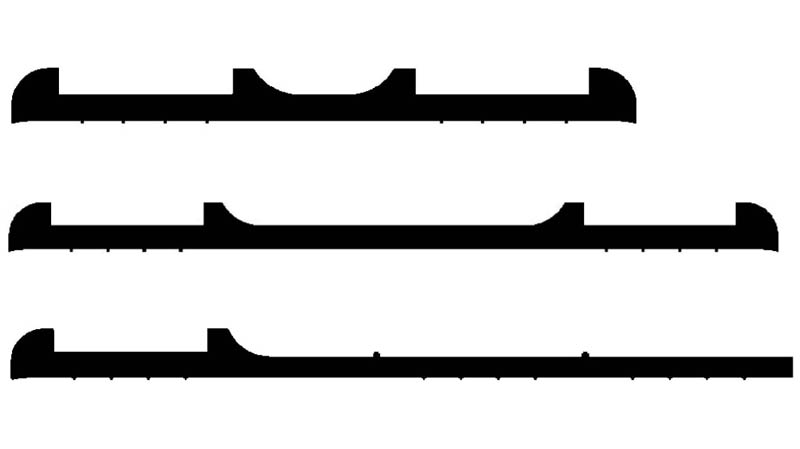

It is available in the widths 7.5" (190 mm), 10.5" (267 mm) and provides an extension.

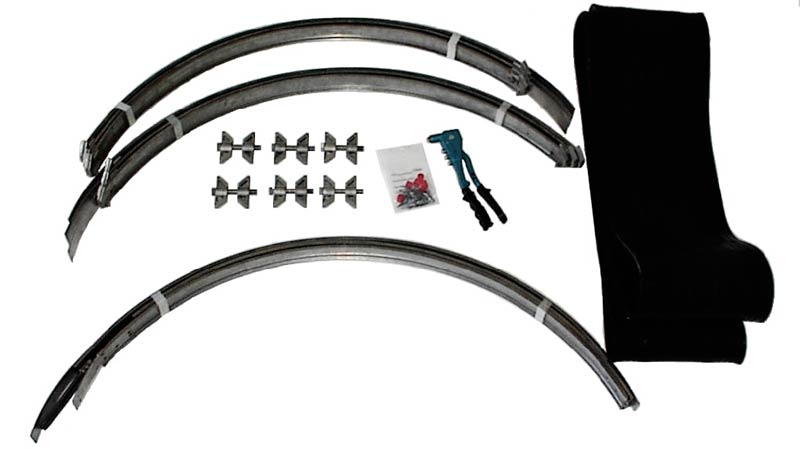

Compounds
- Rubber Seal
- Expansion Bands
- WedgeLock Assemblies
- Pop Rivet Gun
- Pop Rivets and Safety Caps
- Center Band Assembly (when ordered)
Downloads
Certificates
Technical Approvals, Patents, Quality Standards
International Standards
In conformance with worldwide standards
European Standards
Devices meet the requirements of the applicable EC directives
Information
Needed for ordering DrainInternalJointSeals
Prior to ordering Internal Joint Seals it is important to measure the inside diameter of the pipe or manhole on both sides of the joint being repaired.
Take the diameter measurement in two directions to ensure accuracy, top to bottom and side to side.
Measure the opening at the joint. The amount the two sections of pipe or manhole have separated from each other.
| Sealing Area "A" | Recommended Seal | Coverage Area "B" | |||||
|---|---|---|---|---|---|---|---|
| inch | mm | Qty. | inch | mm | inch | mm | |
| 0 - 2.5 | 0 - 63 | 1 | 7.5 | 190 | 7.5 | 190 | |
| 2.5 - 5.5 | 63 - 140 | 1 | 10.5 | 267 | 10.5 | 267 | |
| 5.5 - 10 | 140 - 254 | 1 1 |
7.5 Extension |
190 Extension |
15 | 381 | |
| 10 - 13 | 254 - 330 | 1 1 |
10.5 Extension |
267 Extension |
18 | 457 | |
| 13 - 17.5 | 330 - 444 | 1 2 |
7.5 Extension |
190 Extensions |
22.5 | 571 | |
| 17.5 - 20.5 | 444 - 521 | 1 2 |
10.5 Extension |
267 Extensions |
25.5 | 648 | |
| A = | The portion of the seal which covers the pipe or manhole defect | ||||||
| B = | The complete width of the seal once installed (incl. band compression area | ||||||
