Smart tools to assist you

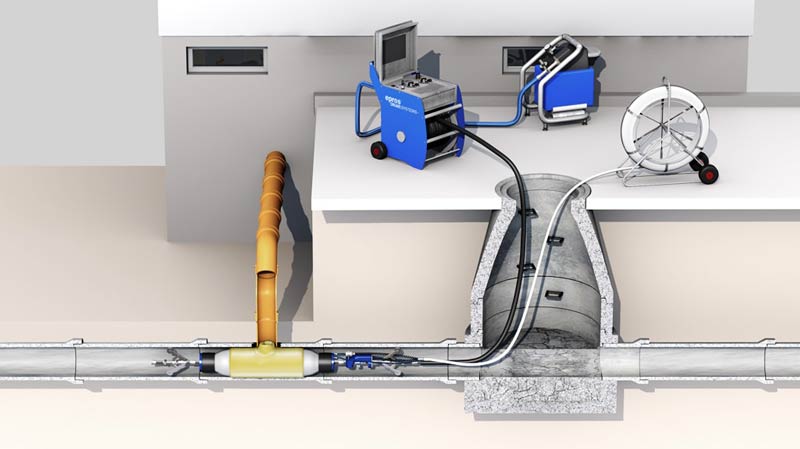

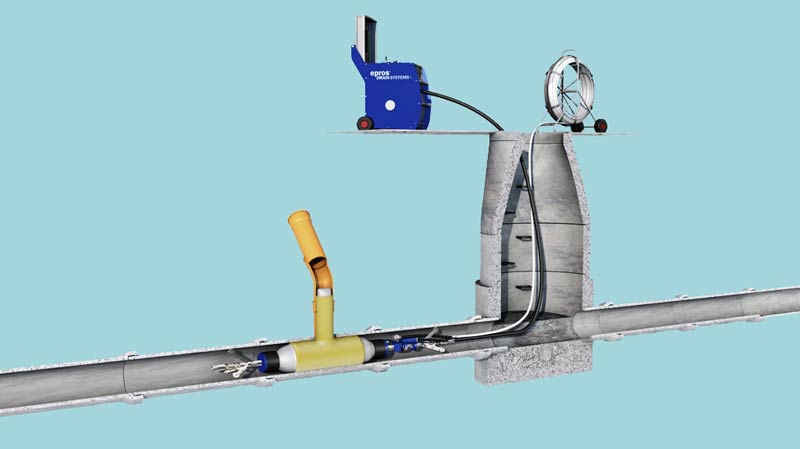

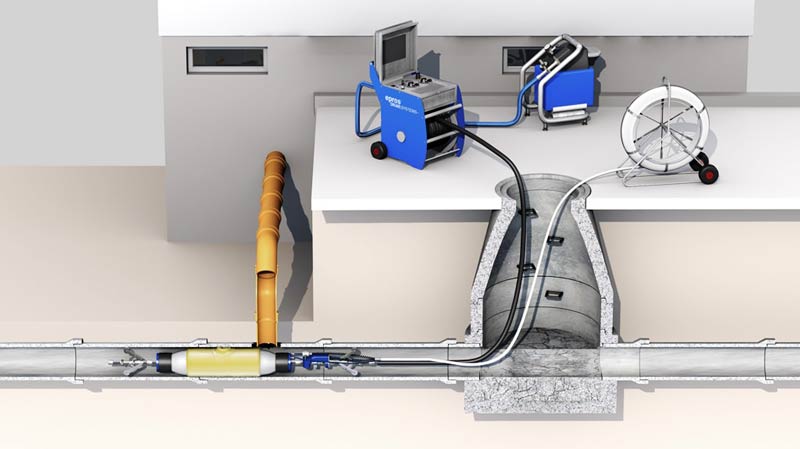

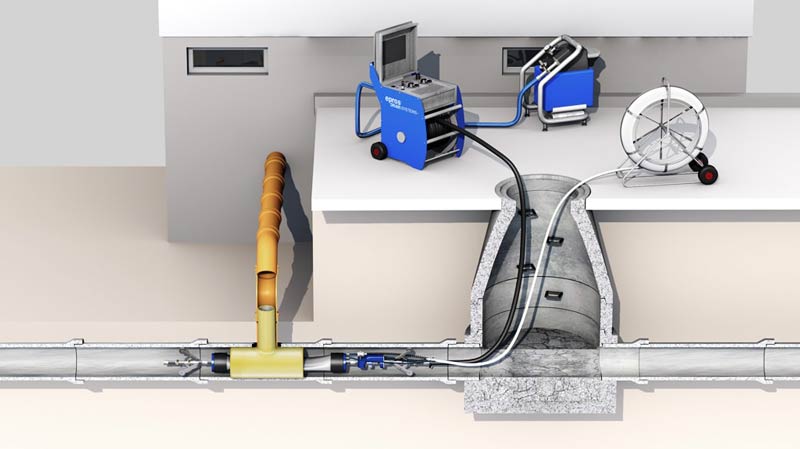

The exact determination of the damaged area and the correct positioning of the packer is the precondition for a successful installation.

The packer is therefore equipped with a camera, a telescopic wheel system and a rotary drive for utmost maneuverability and orientation in the pipe.

A special designed lifting mechanism, called "pathfinder", supports the correct positioning inside the sewer pipe at the damaged lateral connection.

Absolute process control

The monitoring camera installed on the packer assists in the positioning process.

Once the LCR-S packer has reached the junction, the mouth piece of the LCR-S hat profile or LCR-S liner can be turned by means of the push rod reel system for proper alignment with the branch.

You can monitor and control all operations with the external control unit.

Save installation through control mechanisms

The control mechanisms built into the system ensure the highest possible level of security and a high quality result:

• Starting the inflation process is possible only after the lateral hose is locked in place.
• When the lateral packer hose has been completely inverted, a clear acoustic signal is given to indicate that the inversion process successfully is finalized.

Curing at ambient temperatures

The resin systems used in the LCR-S process are ambient curing - this means that you do not need additional technical equipment for heat supply.

Long processing and short curing times increase safety of working and lead to better results. In addition, they are environmentally friendly and styrene-free. In combination with the glass-fiber reinforced carrier material, you will achieve excellent mechanical properties and a sustainable rehabilitation result.

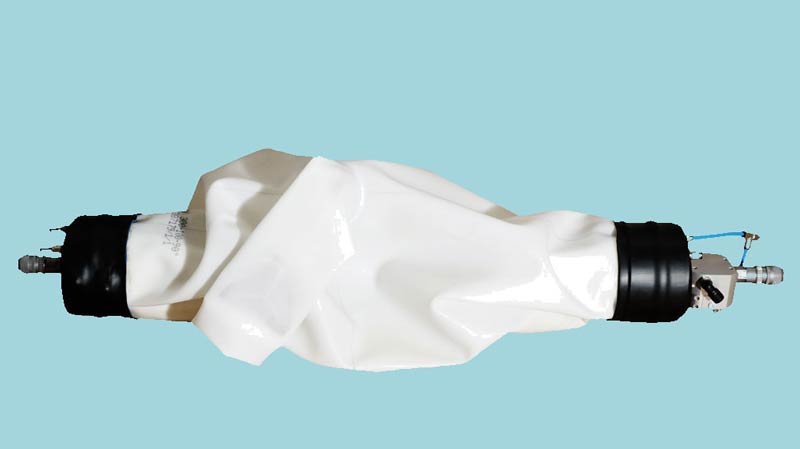

The DrainLCR-S Packer

• Packertypes available for pipe diameters DN 135 - DN 600 in the main and DN 100 - DN 200 in the lateral connection pipe.
• Packers can be converted according to the requirements Toolboxes with appropriate material for the packer conversion are provided
• Repair length in the lateral pipe : 280 mm (Standard) or 600 mm
• Connection angle: 45° or 90°

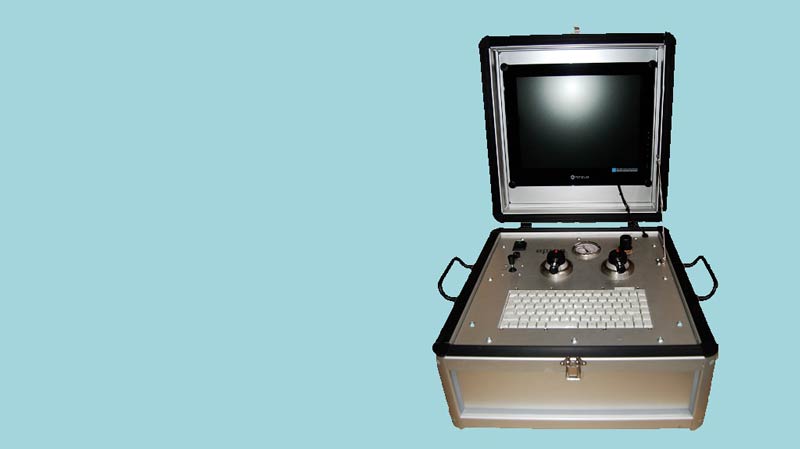

The DrainLCR-S Control unit

• Placed on the LCR-S Hose Reel which is equipped with a combined air/electricity/video-hose package
• Controls the compressed air and the vacuum for the LCR packer, the pathfinder and the motor.
• Includes a high-quality monitor and a keyboard for data input as well as a video output (keyboard and programming in different languages available)

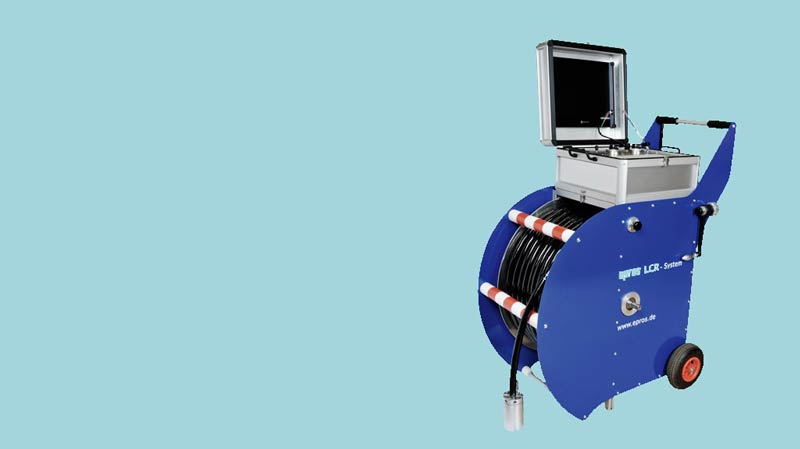

The DrainLCR-S Hose Reel

• Hose Reel with rotary feedthrough incl. camera cable and all supply lines
• Combined Air/electricity/video-hose package (60 m, 100 m or 150 m)
• Multi-function plug for packer connection
• Colour camera (PAL) with LED lights
• Sapphire crystal camera head for LCR packer
• Fill and release valve for nitrogen

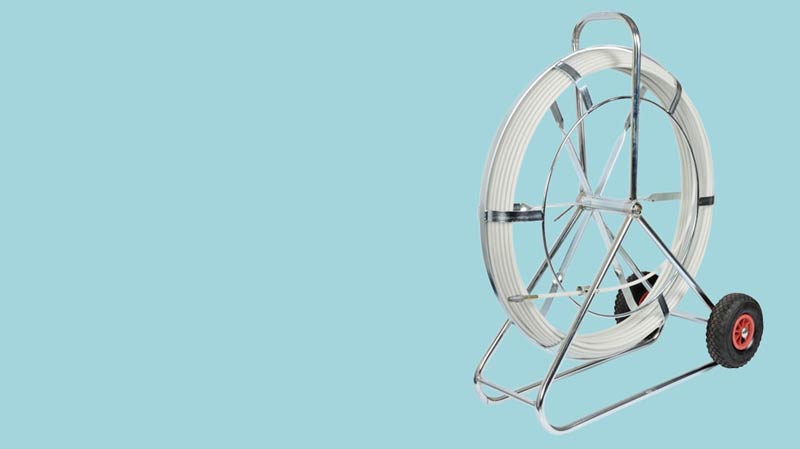

The DrainLCR-S Fibre Glass Push Rod

• Used to transport the LCR-S packer to the point of repair.
• 100 m glasfibre cable on a reel system, equipped with a flexible plug for the packer connection
• Wheelset for mobility
