epros®DrainLCR-B
developed for small diameters
The epros®DrainLCR method provides water tight results
- Little equipment - big effects
- Low investment - high efficiency
- Mobile unit - fix costs
Vertical and horizontal house pipe repairs without breaking walls
Leaking downpipes and sewers in buildings still typically mean bad smells for the residents and can,in the worst case, result in structural damage and moist walls or even mouldiness.
Conventional repair methods – breaking up of walls and/or grounds – then make people suffer noise, dirt and service disruption. Trelleborg Pipe Seals have a remedy for this problem: The new epros®DrainLCR-B repair method repairs laterals without breaking out walls or excavations, and thus means much less annoyance of residents.
How the epros®DrainLCR-B works
The epros®DrainLCR-B is a pipe repair device or method for the rehabilitation of in-house downpipes and underground sewers.

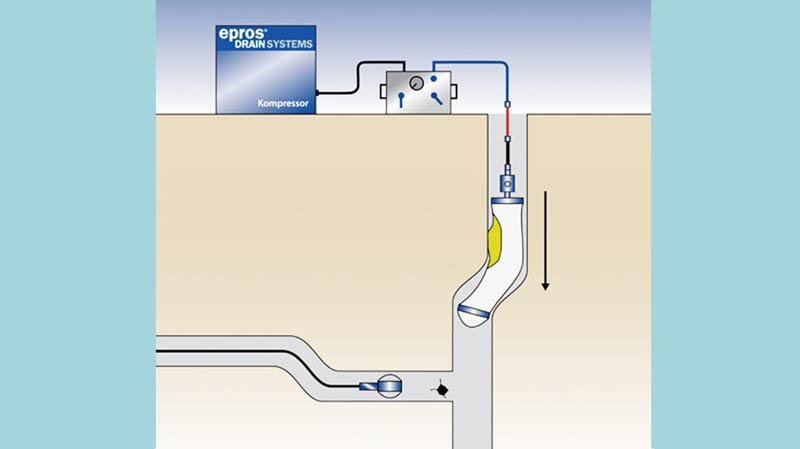

In this innovative method, the repair unit - the so called packer - is inserted in the existing access holes, chambers or eyes of the rainwater or wastewater downpipe and sewer and pushed to the point of repair by means of compressed-air push rods.
Highly flexible material
As the LCR-B packer is highly flexible, it will smoothly negotiate 45° elbows in a DN 100 main pipe and even 90° elbows in lines of DN 125 or more.
An inspection camera is placed into the branch line and pushed up to the main/branch interface.

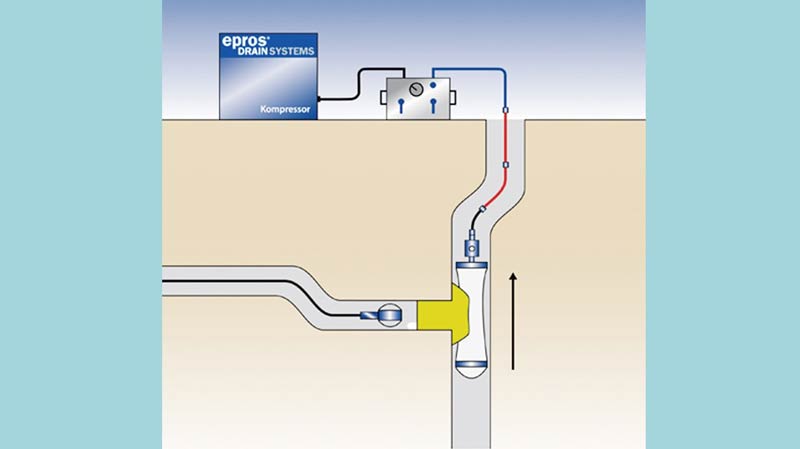

Once the LCR-B packer has reached the junction, the mouth piece of the LCR-B hat profile or LCR-B liner can be turned by means of the locked air push rods for proper alignment with the branch.
Easy to handle
The LCR-B packer will be inflated to start the inversion process of the LCR hat profile. After complete inversion the pressure will be maintained until final cure.
After cure, a vacuum pump integrated in the LCR-B control box removes all air from the DrainLCR-B packer which then can be removed.
Reliable results

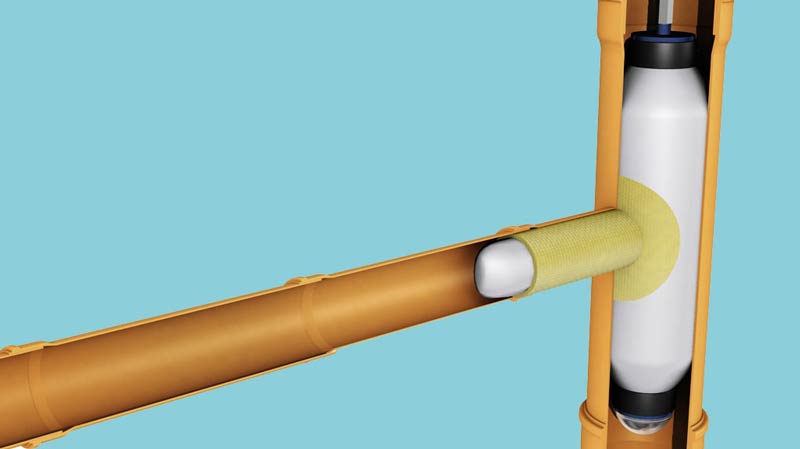

The LCR-B hat profile in the main pipe seals the interface between the two pipe systems with its rim only, whereas the LCR-B liner is designed as a short liner in the down pipe or house sewer.
The standard lateral repair length is 300 mm - the new LCR-B packer model allows a maximum repair length of 1300 mm.
The Advantages at a glance
- Practical: Only little equipment is needed to execute repairs successfully
- Low cost: Just buy the packers actually required - investment is small
- Handy: the low-weight mobile unit requires low space only and can be placed even in a small car
- Flexible: LCR-B packers can be folded as required
- Save: The resin systems used are easy to impregnate, they contain no styrene, VOC's etc. and in case of fire are self-extinguishing.
- Time saving: 50% less operating time due to steam curing
Application Areas
Conditions
The method repairs circular pipes in concrete, reinforced concrete, asbestos cement, vitrified clay, cast iron and plastics (PVC, HDPE, GRP).
Main Pipe Diameters
DN 100 - DN 200 | 4" - 8"
Lateral Pipe Diameters
DN 50 - DN 200 | 2“ - 8“
Connection Angles
Applicable Damages
- Leaks with or without groundwater infiltration or exfiltration at pipe joints, pipe walls, junctions, transitions etc.
- Displaced pipes, cracks and debris, ruptures
- Mechanical wear
- Corrosion
Inapplicable Damages
- Extreme pipe or joint offsets
- Broken or collapsed pipes
- Large cross-sectional reductions in conjunction with bedding problems
- Longitudinal cracks at pipe connections
Before and after curing
Leaking lateral pipe
Water Infiltration through leaking joints
Repaired lateral pipe
The infiltration is stopped, the pipe is watertight.
Certificates
Technical Approvals, Patents, Quality Standards
International Standards
In conformance with worldwide standards
European Standards
Devices meet the requirements of the applicable EC directives
European Standards
In confirmance with European standards
US and Europe
Register numbers to follow
Technical Approval
No. Z-42.3-488
DN 50 to DN 200
with resin systems
EPROPOX HC60 and HC120
Rehabilitation of defective sanitary
pipes, rainwater downpipes and
house drains inside the building
structure
External Quality Control
Components

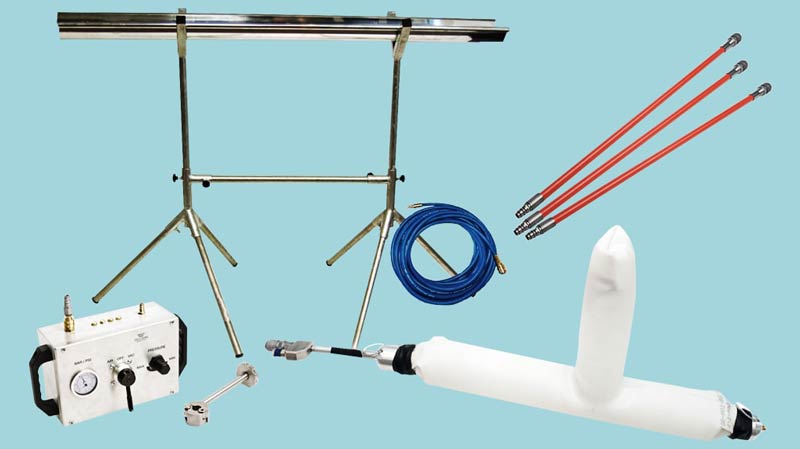

Basic Equipment
epros®DrainLCR-B Packer with Calibration Hose
Packers are available in different sizes according to your requirements. They can easily be converted into the dimension that is needed for the lateral connection (DN 50 - DN 200).
Usable for both, hot water or steam cure.

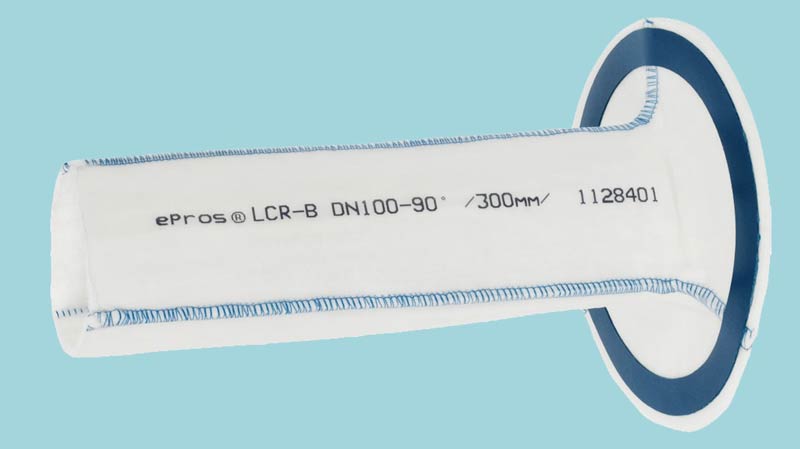

epros®DrainLCR-B Hat Profile 300 / 1200 mm
The LCR-B liner and hat profile material is suitable for steam curing and has high mechanical properties and very good sealing capabilities.
As an alternative to the specifically developed hat profile, it is also possible to use a liner of the appropriate size.
Standard rehabilitation length is 300 mm / 1200 mm is available on demand.
LCR Hat profiles and LCR-Liner are made of 80% ECR Fibre Glass and 15% Polyester Fibre. The surface is covered with a PVC foil, the rim is reinforced.
Regard the typical blue rim and seam of our product.

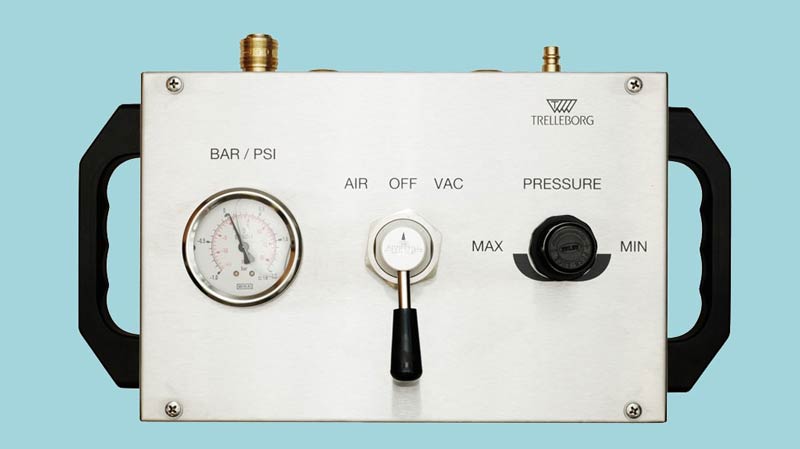

epros®DrainLCR-B Control Box
The LCR-B control box controls the compressed air and the vacuum for the LCR-B packer.

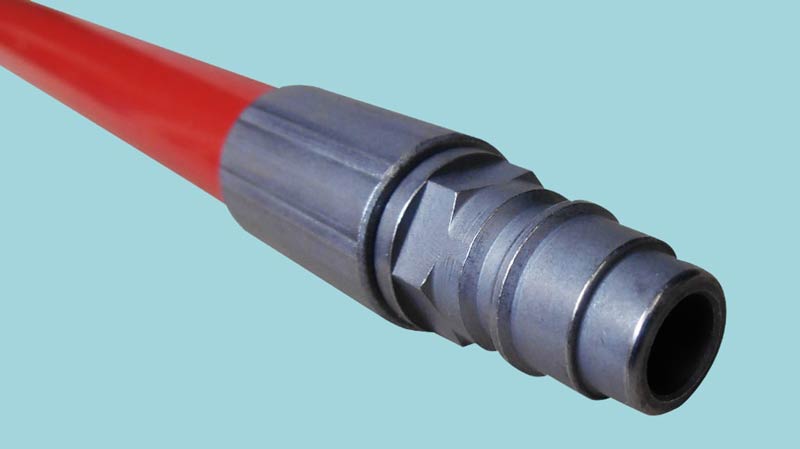

epros®DrainLCR Push Rod
Push rods are available in different materials and lengths (0.7 m; 1.5 m; 3.0 m)
LCR-B air push rods are equipped with safety coupler and lock.
epros®SteamGen V3 / V6
Trelleborg Pipe Seals highly recommends steam curing for epros®DrainLCR methods.
This small steam unit is the best solution if you want to speed up the curing time of built-in hat profiles or LCR liner, using the epros®Drain LCR method for lateral connection repair of underground house sewers and downpipes in buildings. It is easy to handle and suited for portable use.
