epros®DrainMtH
lateral rehab from the main
The technology that solves most previous problems
- No need to enter private property
- Access point can be 150 meters away
- Up to 40 meters rehabilitation length

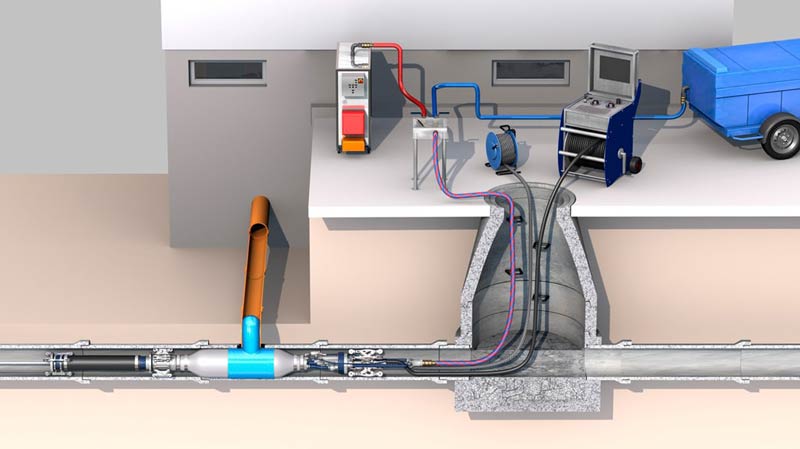

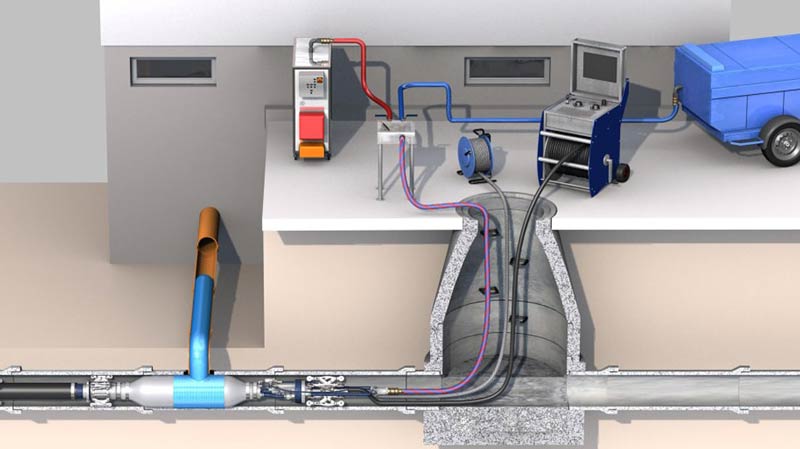

The unique "no-dig" system, that needs no access point in the lateral pipe. The epros®DrainMtH system is a method for the trenchless rehabilitation of property drainage lines by means of the cured-in-place pipe (CIPP) lining technology. The difference from the usual method is the lining direction: It works from the main pipe to repair lateral connection pipes!
MtH - making it different
Conventional CIPP Lining methods are applicated either in the main sewer, working from manhole to manhole, or in house service lines that lead to the main pipe. In both cases two access points are required, one as start point to bring in the devices for the lining process, the other as landing point where the installation ends and final steps are taken to complete the installation.
MtH - changing the direction
Trelleborg’s trenchless operating Main-to-House pipe rehabilitation system makes, in the truest sense of the word, the change in direction. This new system works from the main pipe to repair lateral connection pipes. In addition there is no need to make an access pit or hole inside or outside the building. This requires no direct contact or interference with the property owner.
The new MtH method is also the perfect solution when there is no second access point at all, e.g. due to constructional reasons.
MtH - being a sustainable solution
The MtH method also provides a solution for the main/lateral interface. The crucial advantage is the homogeneous integration of the lateral liner with the stabilizing „main pipe liner“ in the main line. The main/lateral interface liner adheres to the main pipe without annular space and thus provides a perfect seal also for improperly connected laterals.
MtH - The advantages
- No-Dig method
- No need to enter privat property
- Max. rehabilitation length: 30 - 40 m / 98 - 131 ft
- Max. line distance between access manhole and lateral junction: 150 m (492 ft)
- Connection angle: 30° - 90
- Easy to position

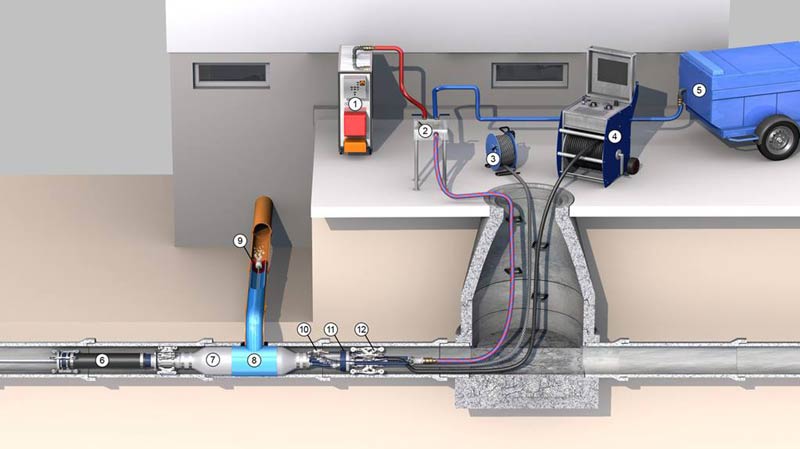

Technical Components
- Steam Gen
- Steam Mixing Table
- Towing Rope
- MtH Control Unit
- Compressor
- MtH Inversion Hose

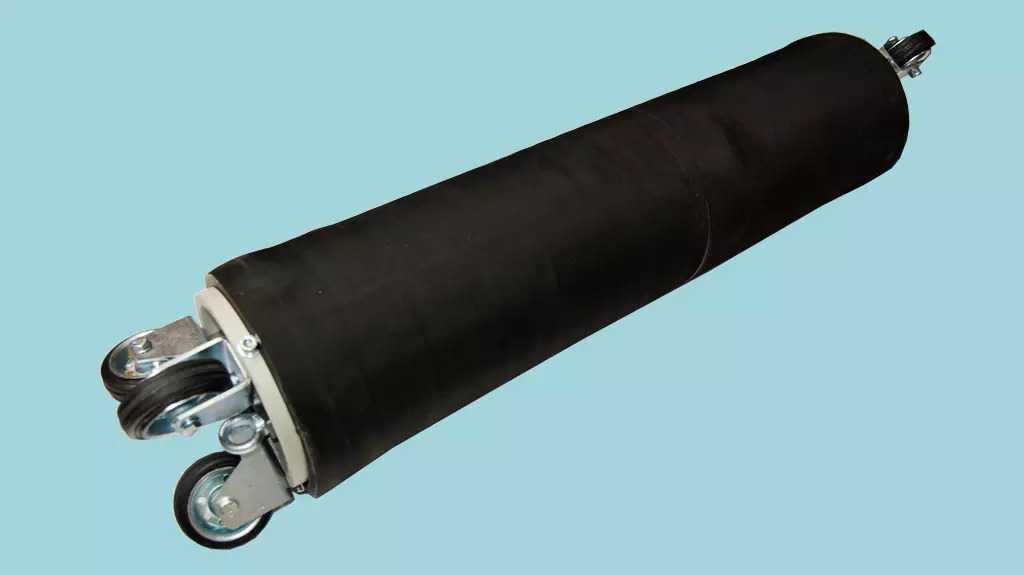

- MtH Packer
- MtH Liner
- Liner End Cap with MtH Steam Outlet
- MtH Camera
- MtH Steam Swivel Unit
- MtH Wheel Set
Application Areas
Conditions
Suitable for the renovation of sewer pipes made of concrete, steel, reinforced concrete, clay, fibrocement, GRP, PVC, PE, PP, and cast iron, if the cross section of the host sewer meets the process requirements and the structural stability criteria.
Diameters and Angles
Main Pipe Diameters
- DN 135 - DN 150 | 5" - 6"
Packer Type 0 - DN 200 - DN 225 | 8" - 9"
Packer Type I - DN 250 - DN 350 | 10" - 14"
Packer Type II - DN 400 - DN 600 | 16" - 24"
Packer Type III
Lateral Pipe Diameters
DN 100 - DN 200 | 4“ - 8“
Connection Angles
Pipe Defect Types
Applicable Damages
- Leaks with or without groundwater infiltration or exfiltration at pipe joints, pipe walls, junctions, transitions etc.
- Displaced pipes, cracks and debris, ruptures
- Mechanical wear
- Corrosion
Inapplicable Damages
- Extreme pipe or joint offsets
- Broken or collapsed pipes
- Large cross-sectional reductions in conjunction with bedding problems
- Longitudinal cracks at pipe connections
Video
Downloads
Certificates
Technical Approvals, Patents, Quality Standards
American Standards
In conformance with US Standard
International Standards
In conformance with worldwide standards
European Standards
In confirmance with European standards
European Standards
Devices meet the requirements of the applicable EC directives
Technical Approval
No. Z-42.3-468
DN 100 to DN 600
with resin system
EPROPOX HC120+
US and Europe
Register numbers to follow
Quality Management
DIN EN ISO 9001
Quality Management
DIN EN ISO 14001
How it works
