Eco 3.0

Tehnički detalji

High-pressure water system

  • Jetting pump: KAISER pressure transformer KDU 148
  • Flow rate 320 – 800 L/min, max. 200 bar
  • Jetting reel capacity 300 m 1” or 220 m 5/4” HP hose
  • Hydraulic auxiliary hose and manual hose
  • ROTOMAX water recycling system

Vacuum system

  • Vacuum pump: KAISER liquid ring pump KWP
  • Suction capacity 1600 – 6200 m3/h
  • Telescopic suction boom, spiral suction boom or combined suction/jetting boom

Tank structure

  • Sludge tank and fresh water tank in chrome steel
  • Tank capacity 8000 litres (18to) to 16,600 litres (40to)
  • Vacuum pump fitted inside fresh water tank
  • Tank cover with lock ring

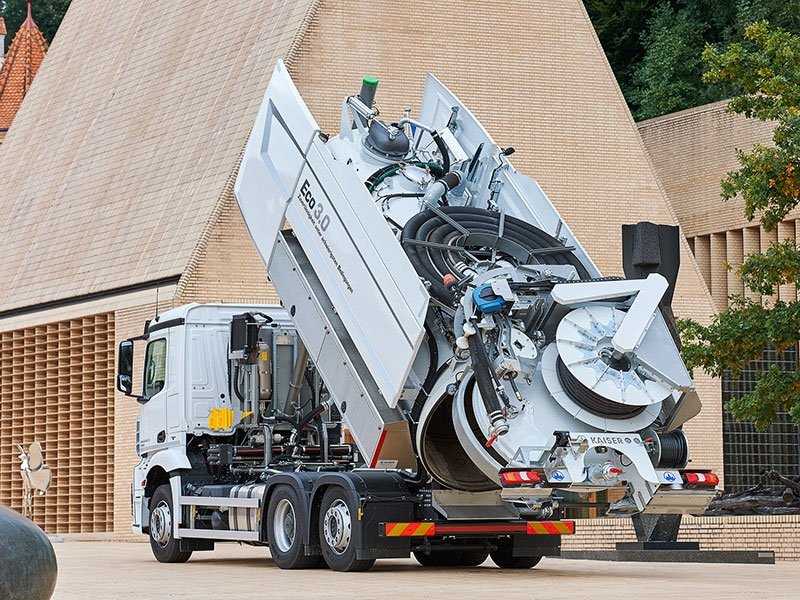

  • Tipping system
  • ADR design
  • Hydraulically tiltable divider door

Operation

  • Control panel on right-hand side at rear of vehicle
  • Radio remote control
  • KAISERtronic control system
  • KAISERteleservice remote maintenance system
Download

Reliable in the toughest conditions

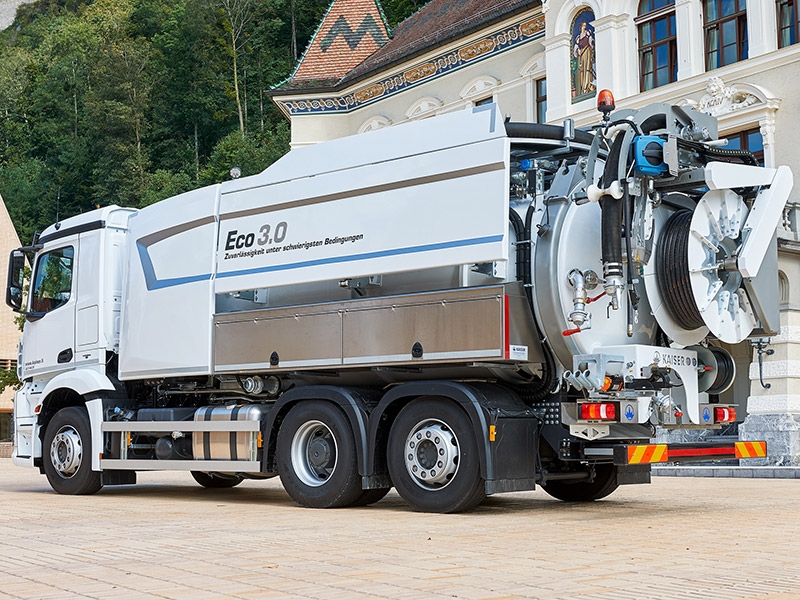

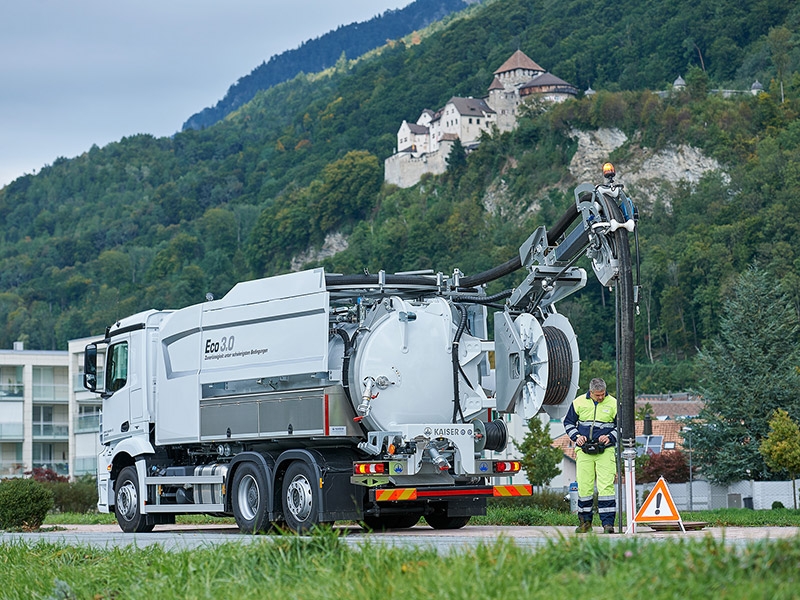

The Eco 3.0 stands for the latest generation of the EcoCombi series which sets new standards in the area of efficient sewer cleaning with water recycling.

Very compact dimensions thanks to an extremely short wheelbase, modern design and the combined hose boom are the most striking new features along with the proven high-power components KDU, KWP and ROTOMAX.

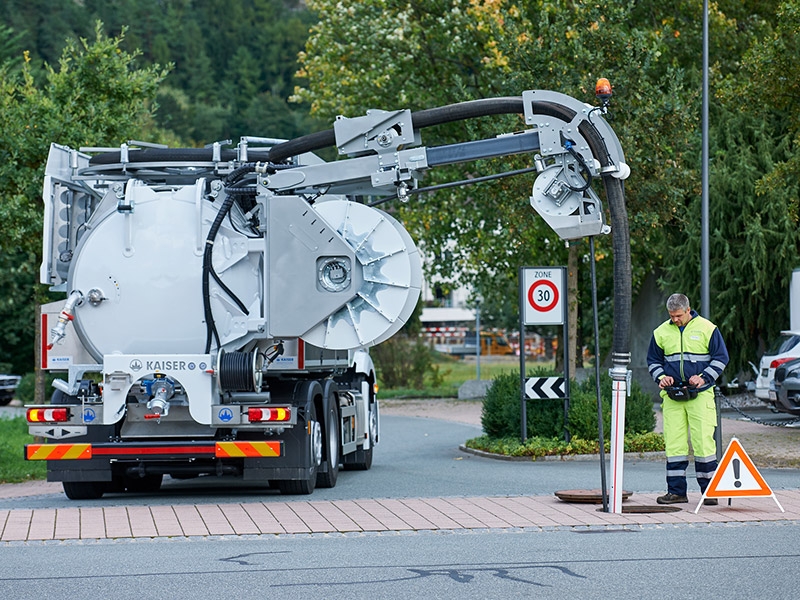

The vehicle has a maximum jetting capacity of 400 litres a minute and a maximum water pressure of 200 bar. The vacuum pump delivers a maximum air flow of 3100m3/h. The combined jetting and suction hose boom can take a suction hose lenght of up to 20 m and enables an extremely low overall height of less than 3.5 m. The flexibility of the boom - offering swivel and telescoping functions as well as up and down movements - further expands the working range.

Efficient and user-friendly

The ultramodern KAISERtronic control system has enabled further optimisation of the hydraulic drive. Output-regulated pumps which only deliver the capacity that is actually required make the Eco 3.0 decidedly more fuel-efficient while providing consistently high performance. The integrated remote maintenance system and even simpler handling enhance the operational efficiency of the vehicles and facilitate maintenance.
