CityCleaner

Technical details

High-pressure water system

  • Jetting pump: KAISER pressure transformer KDU 168
  • Flow rate to 250 L/min, max. 200 bar
  • Jetting reel capacity 120 m 1” HP hose
  • Manual reel
  • Water recycling system “light”

Vacuum system

  • Vacuum pump: KAISER liquid ring pump KWP
  • Suction capacity 900 – 1600 m3/h
  • Suction boom or telescopic suction boom

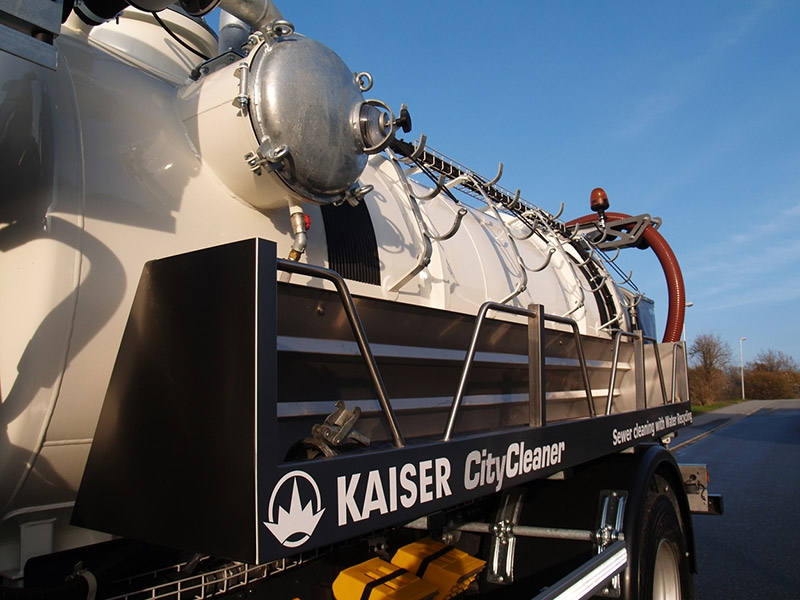

Tank structure

  • Sludge tank and fresh water tank in chrome steel
  • Tank capacity 6800 litres (18to) to 11,500 litres (26to)
  • Vacuum pump fitted inside fresh water tank
  • Tank cover with lock ring
  • Tipping system

Operation

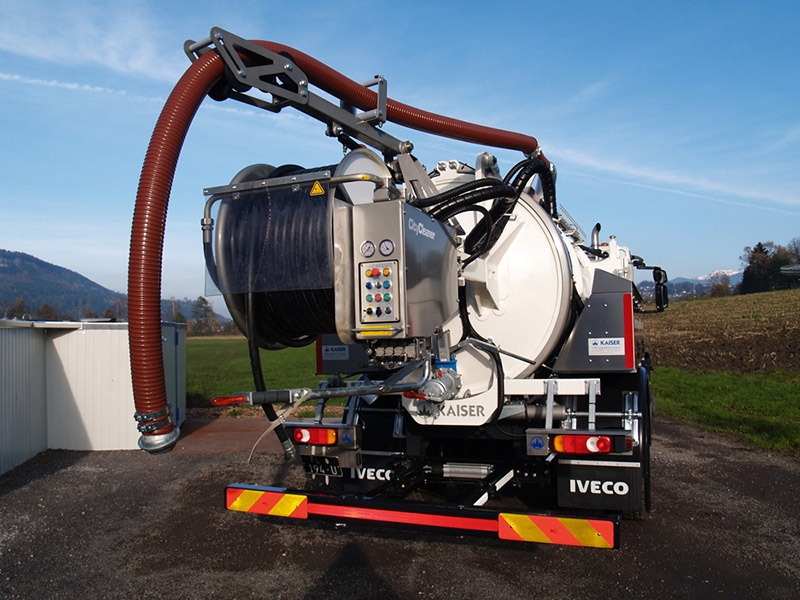

  • Control panel at rear of vehicle
  • Radio remote control
Download

Jetting and suction vehicle with high flexibility

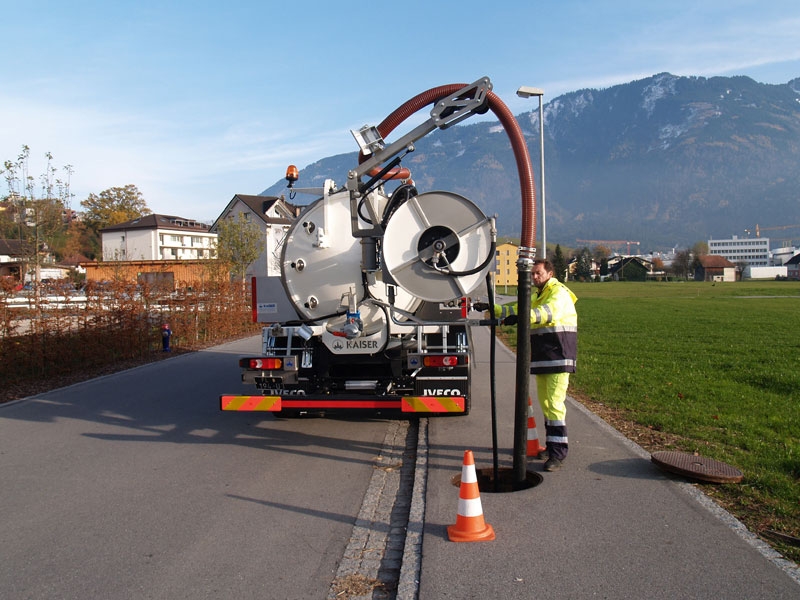

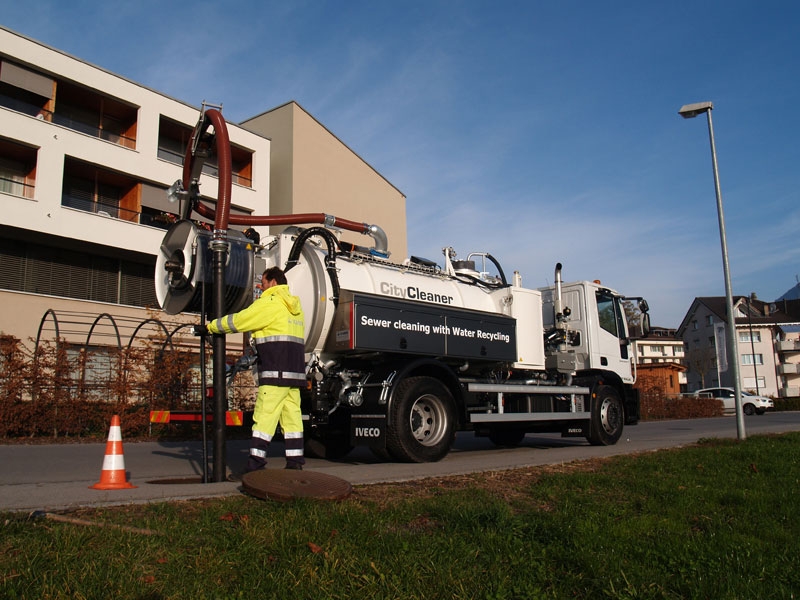

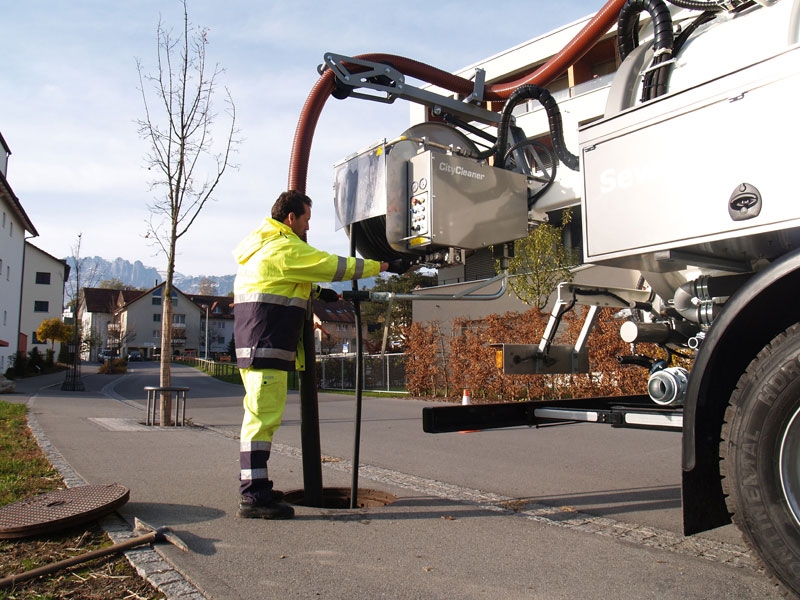

The CityCleaner is a compact water recycling vehicle with a special functionality, designed for 2- or 3-axle tuck chassis. Vacuuming of the sewer material and jetting of the sewer pipe are in succession, which allows an easy handling in spite of a high cleaning performance.

Water recycling „light”

The filtration is carried out via a flat filter with pneumatic scraper and allows the water intake from any waters and sewer canals. KDU and KWP are the proven core components of the vehicle. With a winter protection system, sewer cleaning is also possible in freezing temperatures.
