Tornado

Technical details

High-pressure water system

  • Triplex high pressure plunger pump
  • Delivery from 280 up to 500 lt/min; pressure up to 250 bar
  • Main high pressure hose reels, with a capacity up to 220 mt of 1" high pressure hose, or 150 mt of 1-1/4" hose
  • Auxiliary hose reels, manually or hydraulically driven

Vacuum system

  • High vacuum positive displacement blowers with delivery from 3'900 up to 10'500 m3/h
  • Suction hose reel on tank with hose boom
  • Various hydraulic telescopic suction booms
  • Jetting hose reel model KSA for the combination of HP jetting hose and suction hose

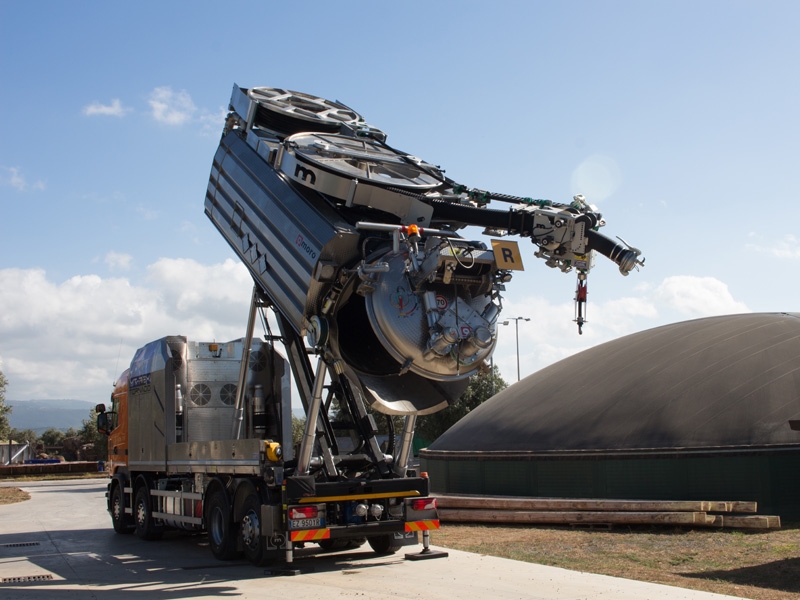

  • Tilting tank made in carbon steel or chrome steel

Tank structure

  • Fresh water in front section of the tank, with permanent separation from sludge tank; Fresh water in side-mounted water tanks in polyethylene or chrome steel
  • Total sludge + fresh water tank capacity ranging from 14'000 lts (26 ton) up to 18'500 lts (32 ton)
  • ADR or ATEX homologation

Operation

  • Control panel towards the rear of the vehicle
  • Radio remote control with all the relevant operating functions

Powerful perfomances with high comfort

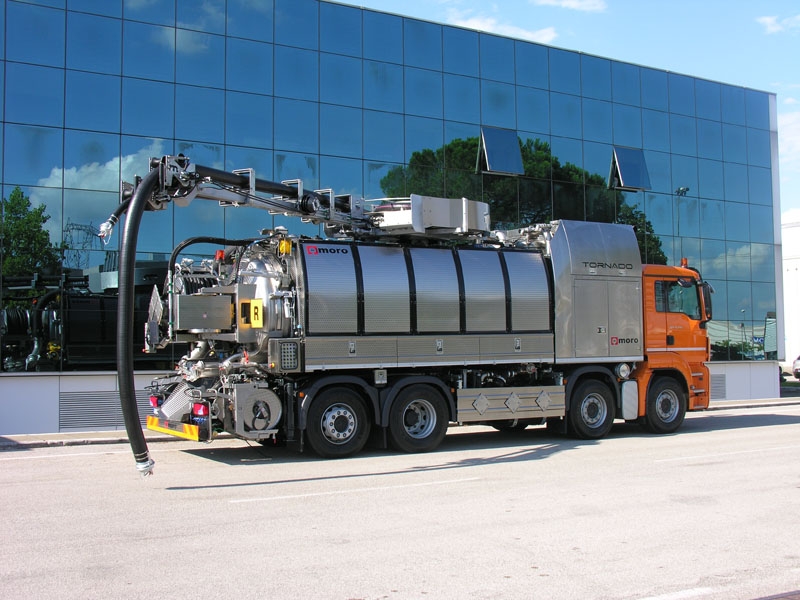

Tornado is the KAISER MORO equipment projected for the use in industrial cleaning; it is characterized by the very high performance of the vacuum pumps and high pressure pumps installed, in addition to the exclusive design, recognizable by the important soundproof box for the pumps housing and for the particular shape of the side tanks in rounded profile, which makes it unique in the panorama of the liquid suction equipment and for the cleaning of sewage and industrial pipelines.

Tornado is available with different models of high vacuum positive displacement blower with flow rates up to 10,500 m3 / h, equipped with an air injection cooling system that enables continuous operation even at high temperatures. The quiet operation of the equipment is the basic requirement to ensure the right comfort for the operator and a high standard working environment. The equipmnent is actioned by means of the power take-off on the carrier vehicle or a separate intermediate gearbox.

Safety and ease of use

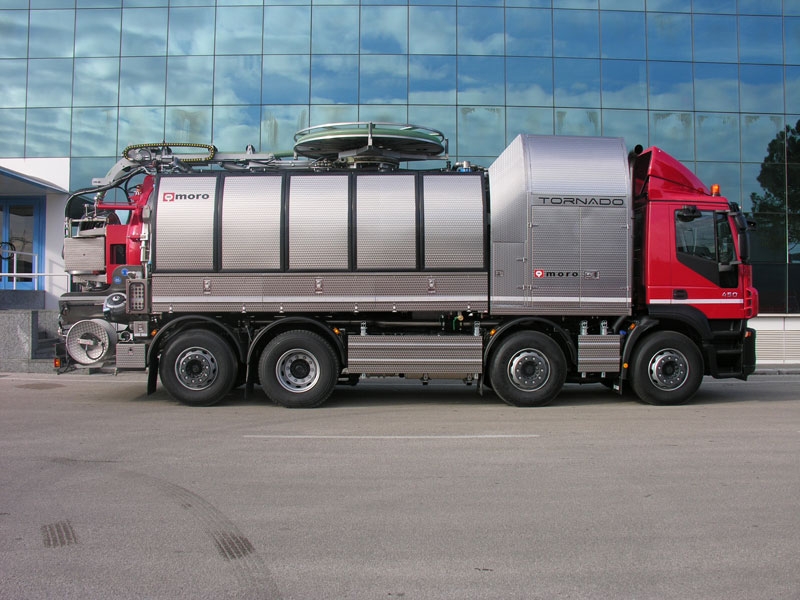

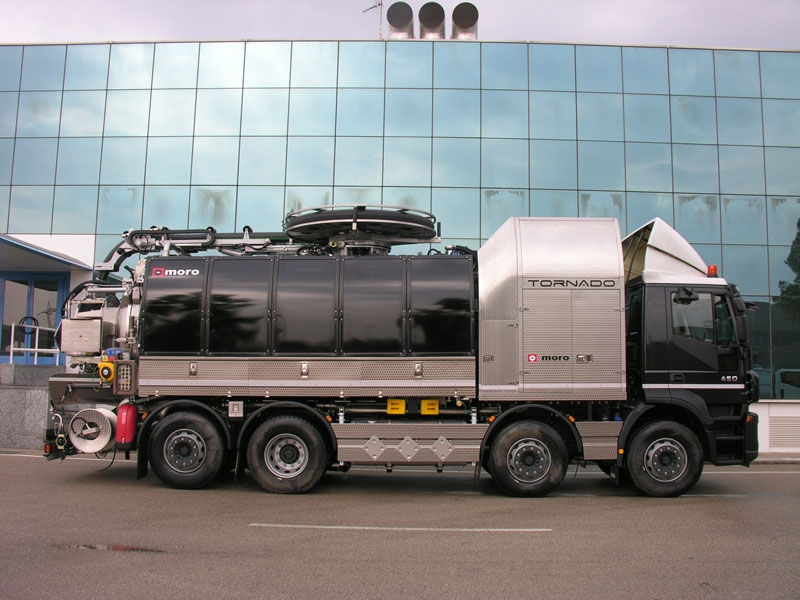

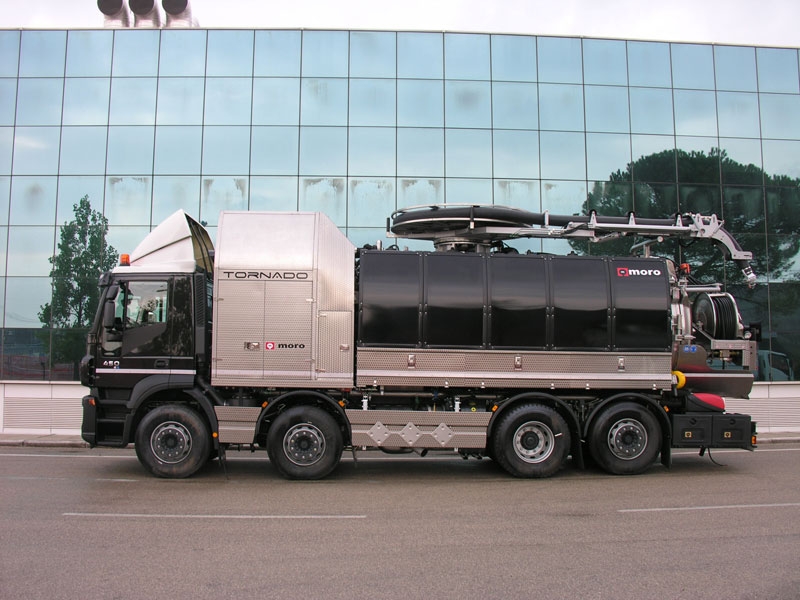

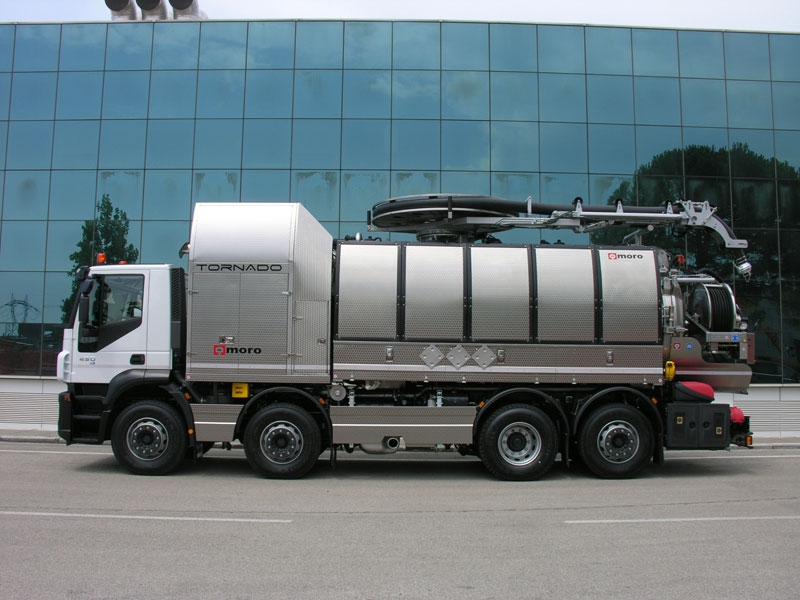

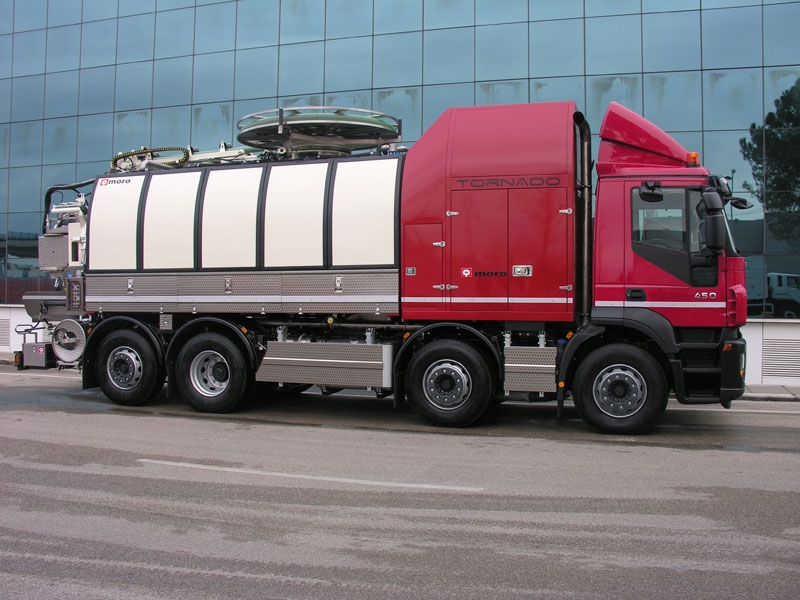

Tornado is installed on vehicles with 3 or 4 axes. The side tanks for clean water are produced both in the version in polyethylene and stainless steel, thus offering the possibility to define the layout of the equipment according to the specific needs of the customer.

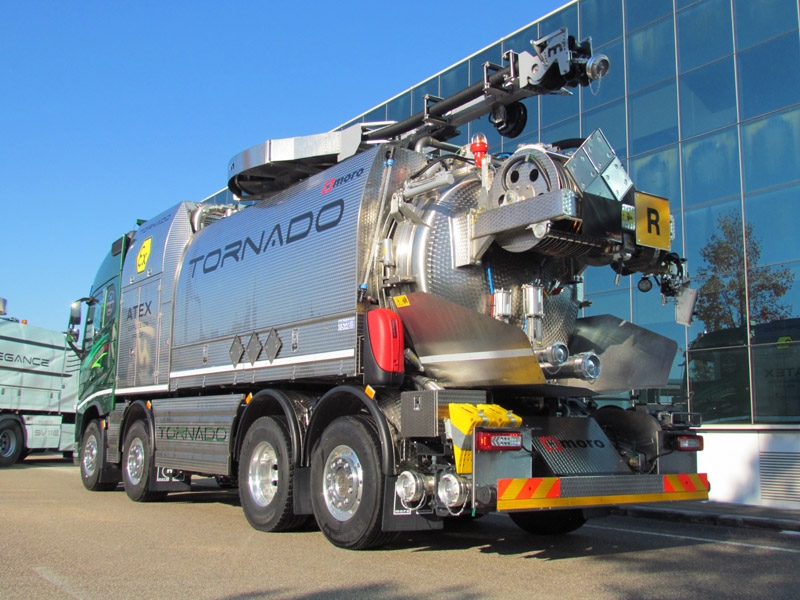

Although Tornado is designed to work at very high performance in a very heavy duty operations, controlling the equipment is secured by an operator interface which ensures ease of use. A wide range of additional options as well as different suction boom versions, various jetting hose reels are available. Tornado is also made in ADR and ATEX version.
