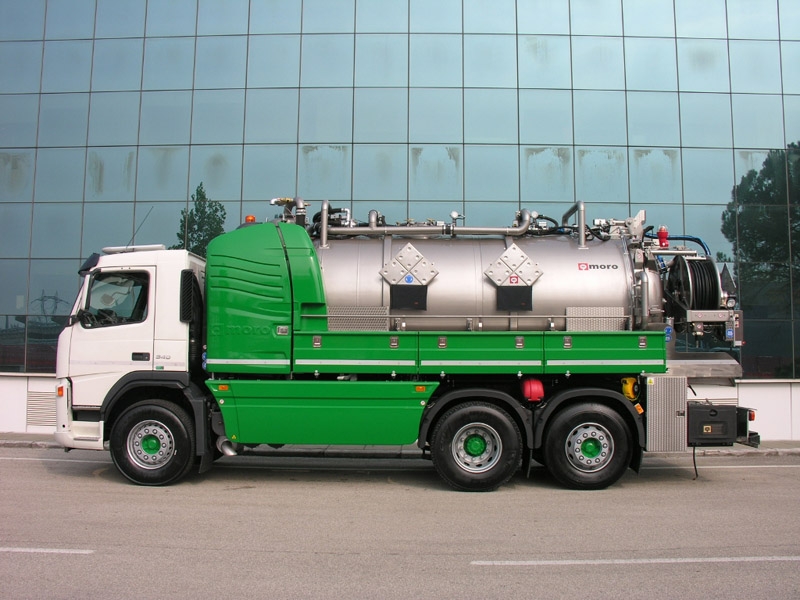

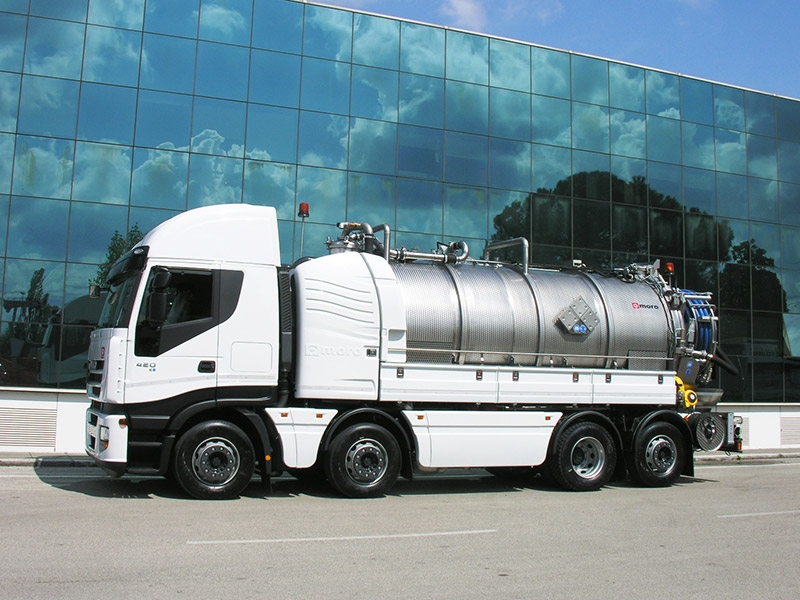

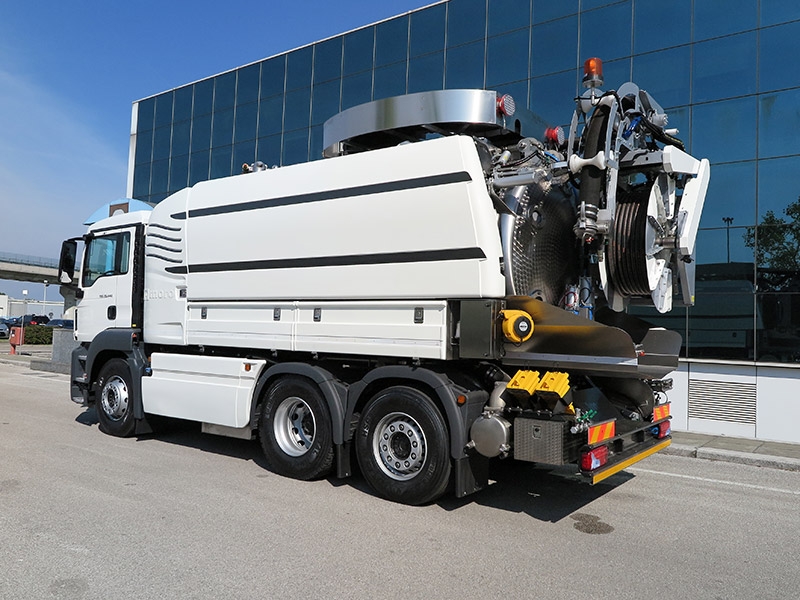

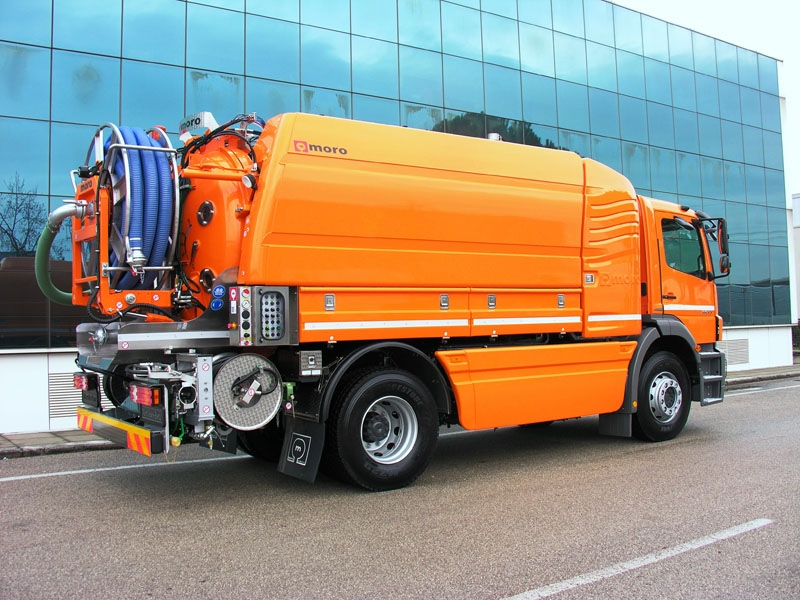

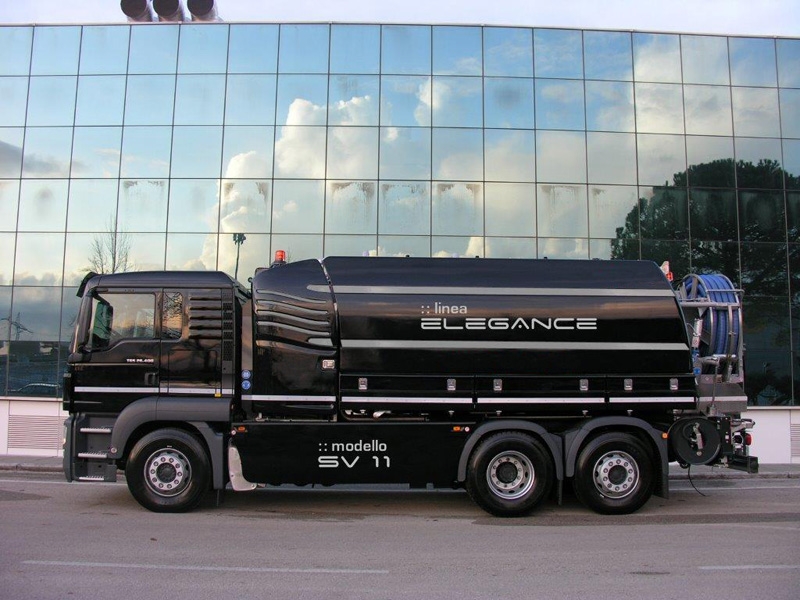

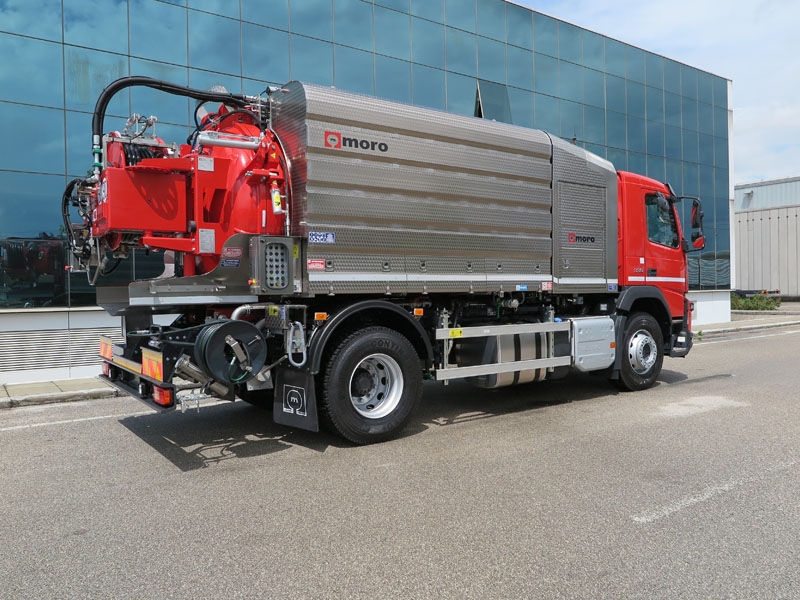

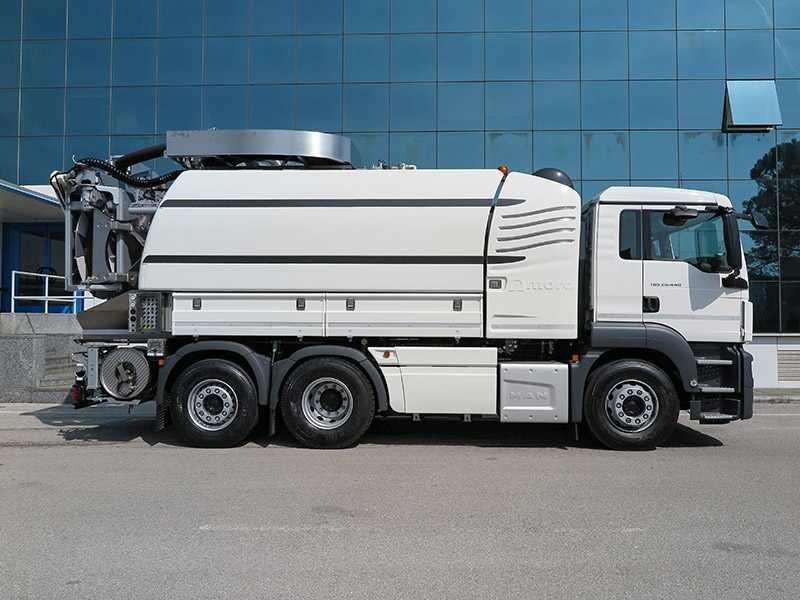

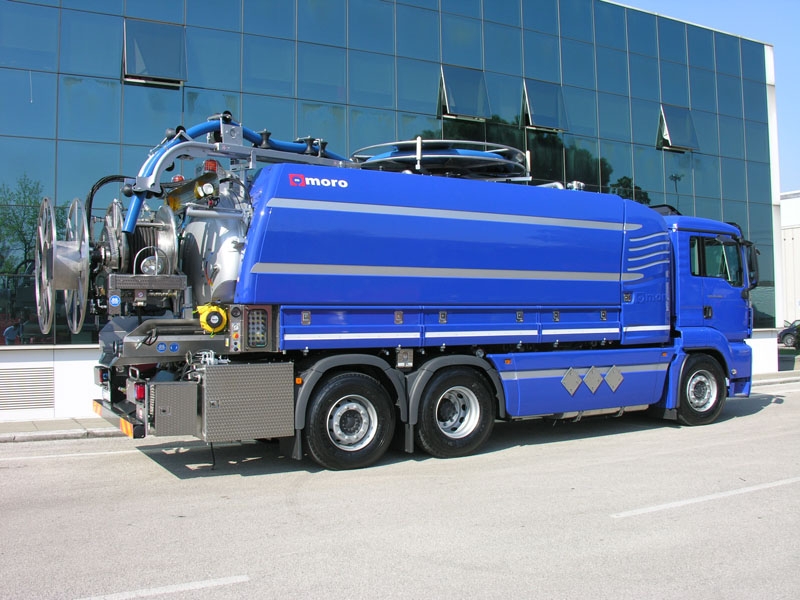

Elegance 2.0

Technical details

High-pressure water system

  • Triplex high pressure plunger pump
  • Delivery from 68 up to 410 lt/min; pressure from 50 up to 210 bar
  • Main high pressure hose reels, with a capacity up to 220 mt of 1" high pressure hose, or 150 mt of 1-1/4" hose
  • Auxiliary hose reels, manually or hydraulically driven

Vacuum system

  • Liquid cooled vane vacuum pumps, positive displacement blower vacuum pumps
  • Delivery from 984 m3/h up to 3.900 m3/h

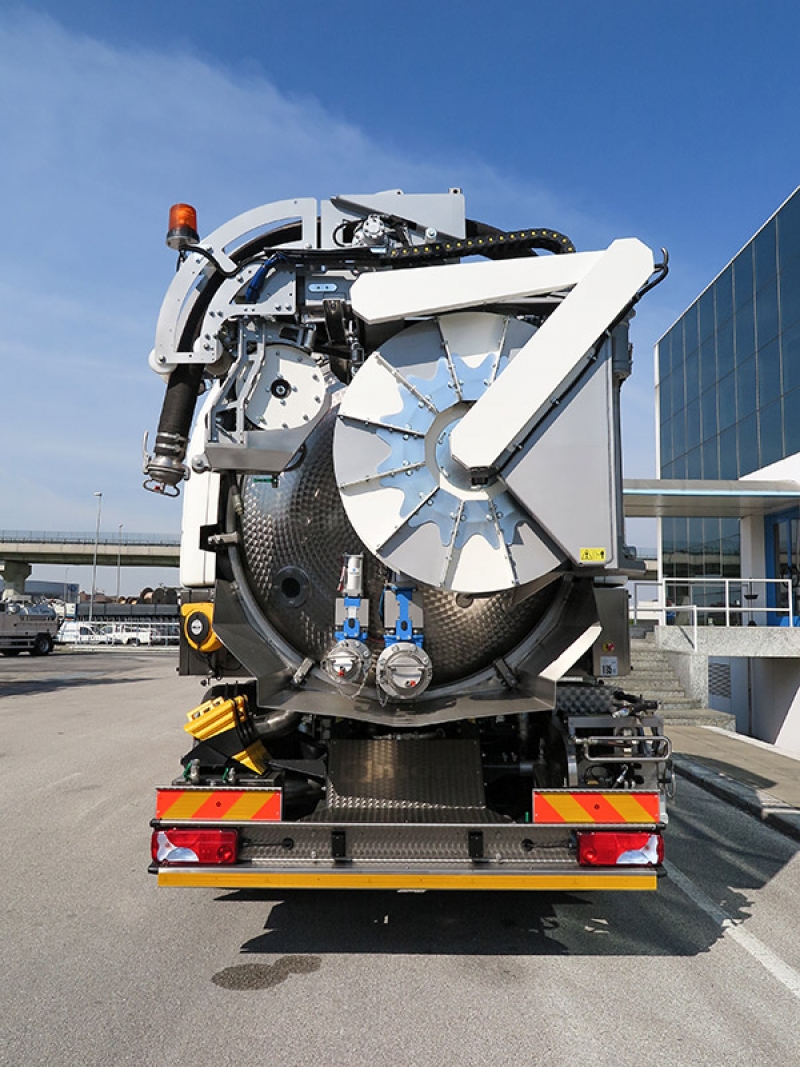

  • Rear hinged suction hose reel, suction hose reel on tank in simple construction or with hose boom
  • Various hydraulic telescopic suction booms
  • Jetting hose reel model KSA for the combination of HP jetting hose and suction hose

Tank structure

  • Tilting tank made in carbon steel or chrome steel
  • Fresh water in front section of the tank, with permanent separation from sludge tank; Fresh water in side-mounted water tanks in polyethylene or chrome steel
  • Total sludge + fresh water tank capacity ranging from 8'200 lts (18 ton) up to 20'100 lts (32 ton)
  • ADR or ATEX homologation

Operation

  • Control panel towards the rear of the vehicle
  • Radio remote control with all the relevant operating functions
  • Memory function for performance parameters (option)
Download

Top performance, outstanding reliability and excellent design

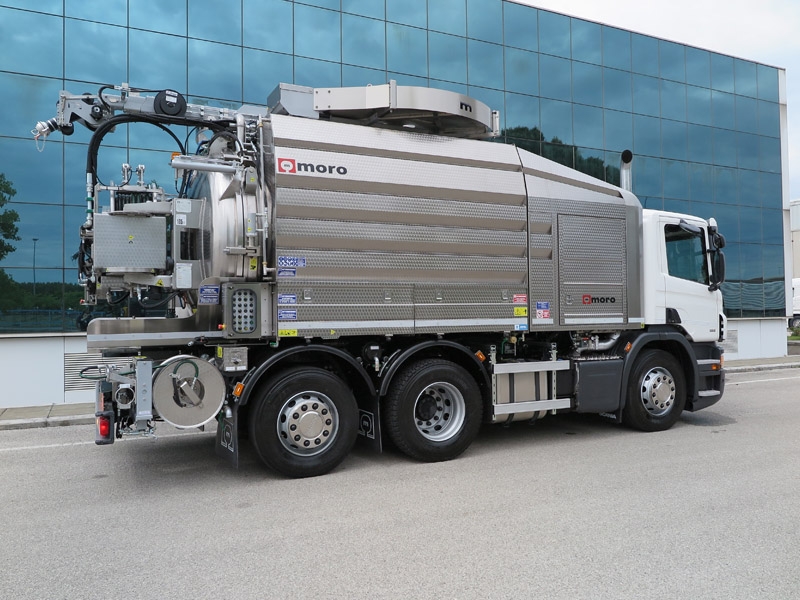

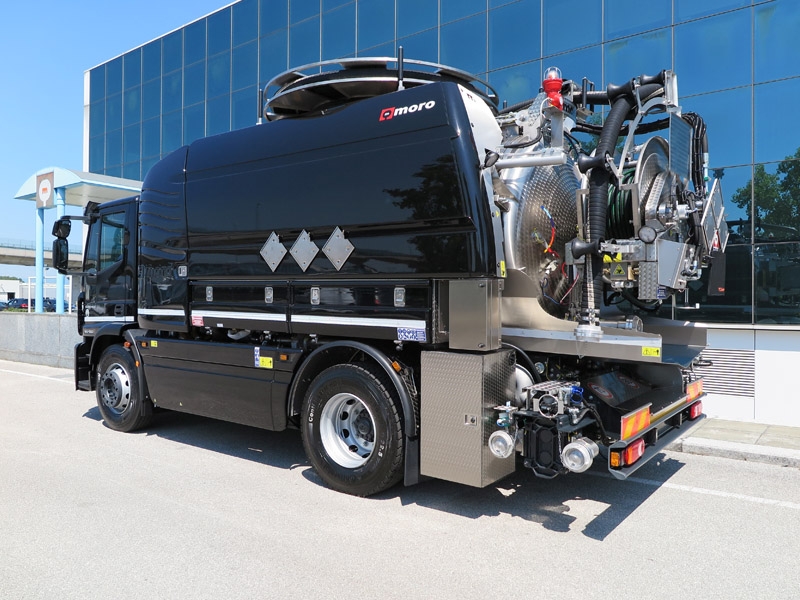

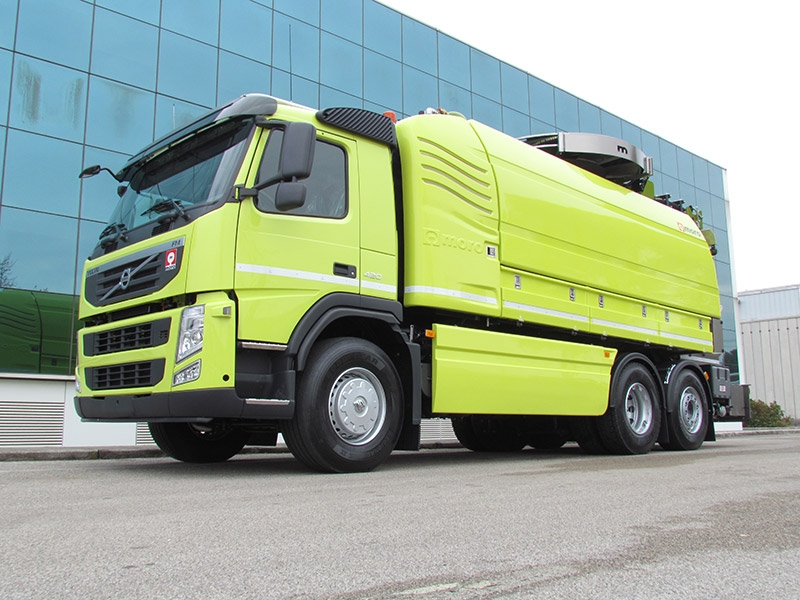

The Elegance 2.0 impresses with modern looks as well as robust and dependable technology. Decades of experience and cutting-edge development work are perfectly matched in this product line. It uses materials which unite low weight and high resistance.

Triplex plunger pumps are available for the high-pressure system, and MORO KAISER vane pumps or positive displacement blowers for the vacuum system. The respective pumps are located between the driver’s cab and the tank. The components are hydraulically or mechanically driven depending on power requirements. This is performed by means of the power take-off on the carrier vehicle or a separate intermediate gearbox.

Versatility and high operator comfort

The well-conceived modular system allows the configuration of a broad spectrum of vehicles, from the compact 2-axle vacuum vehicle to the top-of-the-range 4-axle combination vehicle. The option of side-mounted water tanks in polyethylene or chrome steel enables the tank layout to be optimally adapted to the needs of the individual customer.

Vehicle operation has been designed with a focus on simple handling. A wide range of additional options as well as different suction boom versions, various jetting hose reels or ADR / ATEX round off the Elegance series.
