epros®DrainLCRB HatProfile

The high quality material of the hat profile consists of a mixture of glass fibre (85%) and plastic fibre mat (15%).

LCR-hat profiles are covered with PVC foil, the rim is reinforced.

Two Types of Hatprofiles available:

1. LCR-B hat profile 300
   Standard lateral connection rehabilitation length 280 mm
2. LCR-B hat profile 1200
   Extended version with rehabilitation length 1200 mm

Lateral Connection diameter:
DN 50, 70, 100, 125, 150

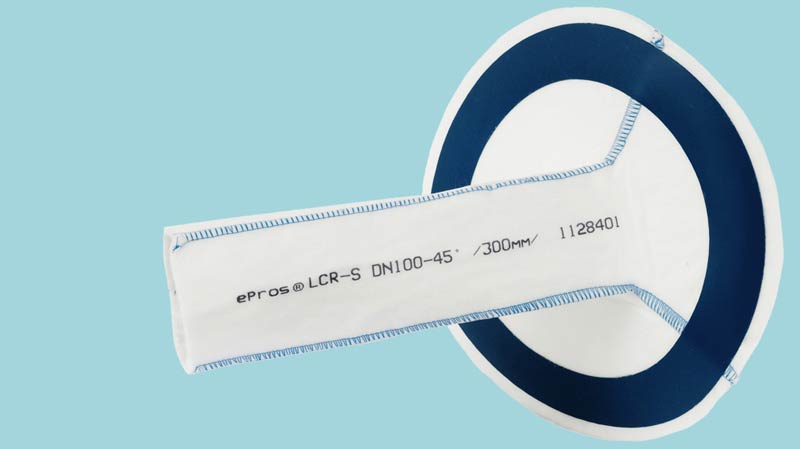

epros®DrainLCRS HatProfile

The high-quality material of the hat profile consists of a mixture of glass fibre (85%) and plastic fibre mat (15%)

LCR-hat profiles are covered with PVC foil, the rim is reinforced.

Two Types of Hat profiles available:

1. LCRS hat profile 300
   Standard lateral connection rehabilitation length 280 mm
2. LCRS hat profile 600
   Extended version with rehabilitation length 600 mm

Lateral Connection diameter:
DN 100, 125, 150, 200, 225, 250

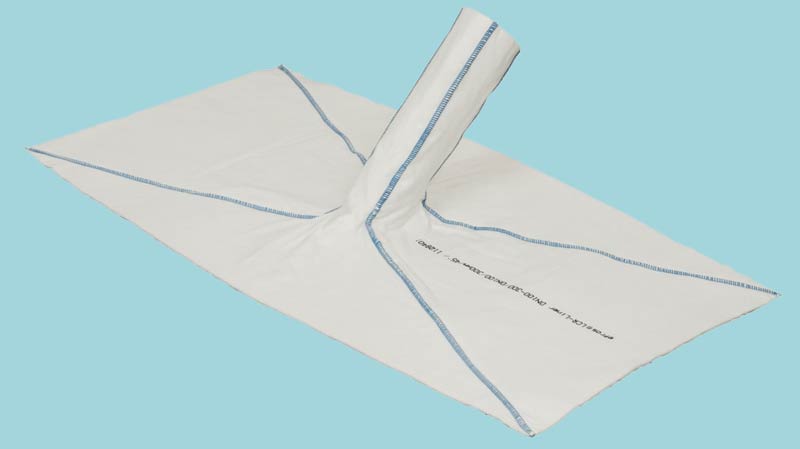

epros®DrainLCR Liner

The high quality material of the hat profile consists of a mixture of glass fibre (85 %) and plastic fibre mat (15 %).

epros®LCR Liners are multidimensional: You need only three sizes for main sewer diameter

1. DN 100 / 200
2. DN 100 / 300
3. DN 350 / 600

Lateral Connection diameter:
DN 50 - DN 250

Angle:
45° / 90°

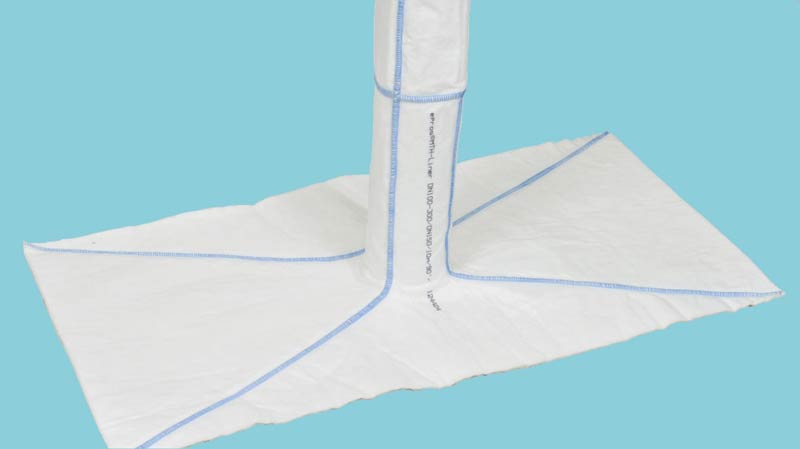

epros®DrainMtH Liner

100 % Polyester fibre needle fleece, one side PP-coated, stitched seam with PES-thread, seam coating with PP tape.

epros®MtH Liners are multidimensional: You need only three sizes for main sewer diameter

1. DN 100 / 200
2. DN 100 / 300
3. DN 350 / 600

Lateral Connection diameter:
DN 100 - DN 200

Lateral lengths:
from 1 m up to 30 m
