Multi-size plugs with larger bypass PLUGSY VP

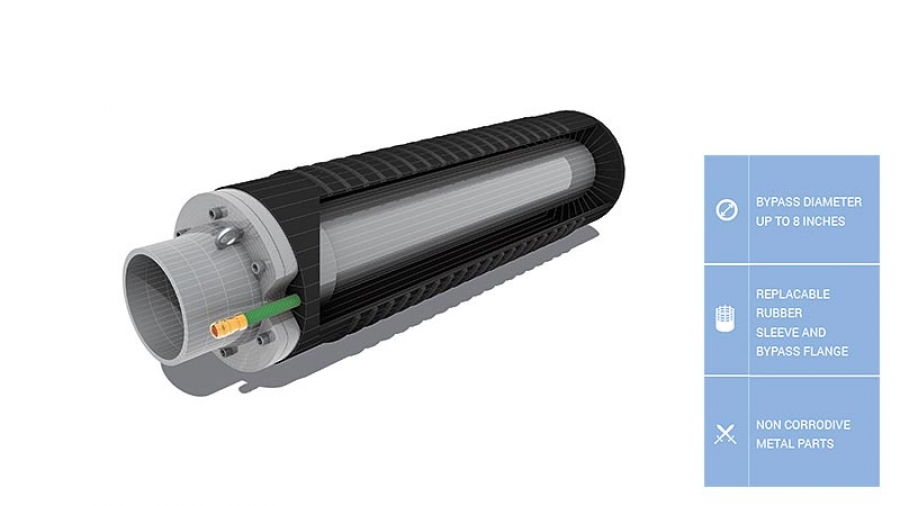

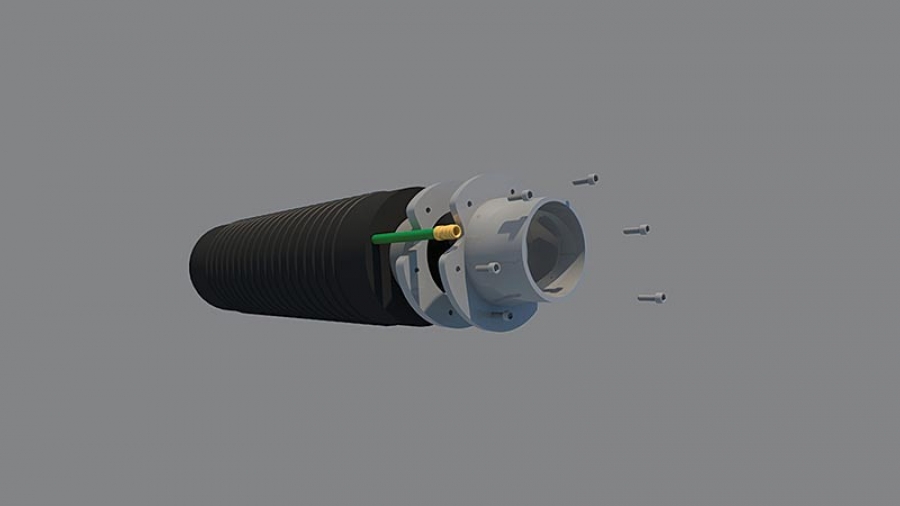

Savatech multi-size plugs with larger bypass PLUGSY VP cover range from 100 mm up to 1800 mm. The replaceable rubber sleeve is reinforced with Kevlar cord and assure safe and simple handling. The by-pass is made of PHP hose and equipped with a threaded aluminium flange on the front side, which is easily replaceable to adjust the flow to actual requirements.

Use of plugs for testing tightness with air or water is also possible.

PLUGSY VP - Bypass plug

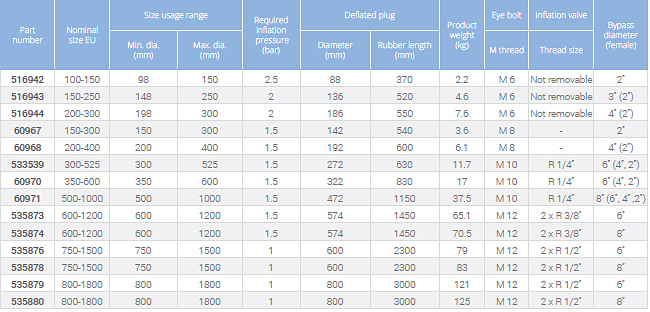

multi size plugs with larger bypass plugsy vp tab 1

BACK PRESSURE - measured in dry iron pipe (bar)

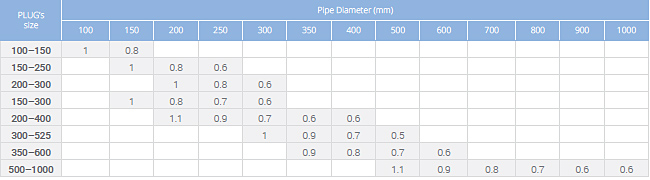

multi size plugs with larger bypass plugsy vp tab 2

BACK PRESSURE - measured in dry iron pipe (bar)

multi size plugs with larger bypass plugsy vp tab 3
